Beskrivelse
beskrivelse (Engelsk)
| ETHERNET | |
| LAN | 5 x RJ45 ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| PERFORMANCE SPECIFICATIONS | |
| Bandwidth (Non-blocking) | 1 Gbps |
| MAC address table size | 2K entries |
| Jumbo frame support | 2048 bytes |
| POWER | |
| Connector | 2-pin industrial DC power socket |
| Input voltage range | 9 – 30 VDC |
| PoE (passive) | Passive PoE. Possibility to power up through first LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards |
| Power consumption (idle/max) | Idle: 0.3 W / Max: 0.9 W |
| PHYSICAL INTERFACES (PORTS, LEDS) | |
| Ethernet | 5 x RJ45 ports, 10/100 Mbps |
| Status LEDs | 1 x Power LED, 10 x LAN status LEDs |
| Power | 1 x 2-pin industrial DC power socket |
| PHYSICAL SPECIFICATION | |
| Casing material | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 113.1 x 27.4 x 80.5 mm |
| Weight | 146.5 g |
| Mounting options | DIN rail or wall mounting (additional kit needed), flat surface placement |
| CERTIFICATION & APPROVALS | |
| Regulatory | CE, REACH, RoHS, WEEE |
| UKCA, FCC, IC, CB, RCM | |
| OPERATING ENVIRONMENT | |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10 % to 90 % non-condensing |
| Ingress Protection Rating | IP30 |
| SAFETY | |
| Standards | EN IEC 62368-1:2020+A11:2020 |

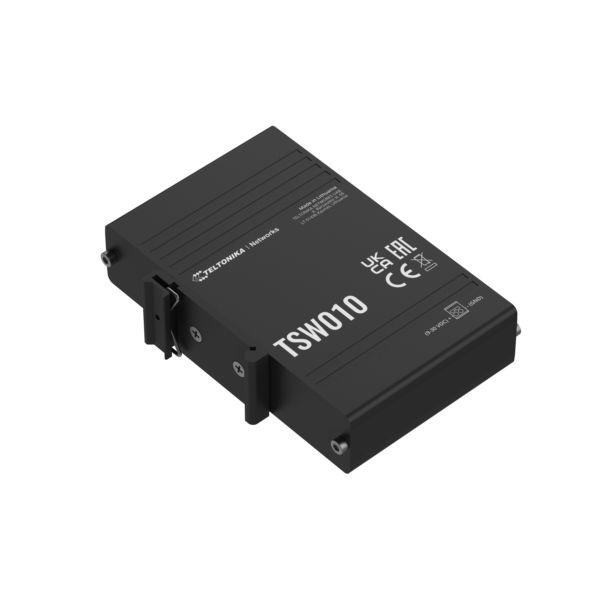

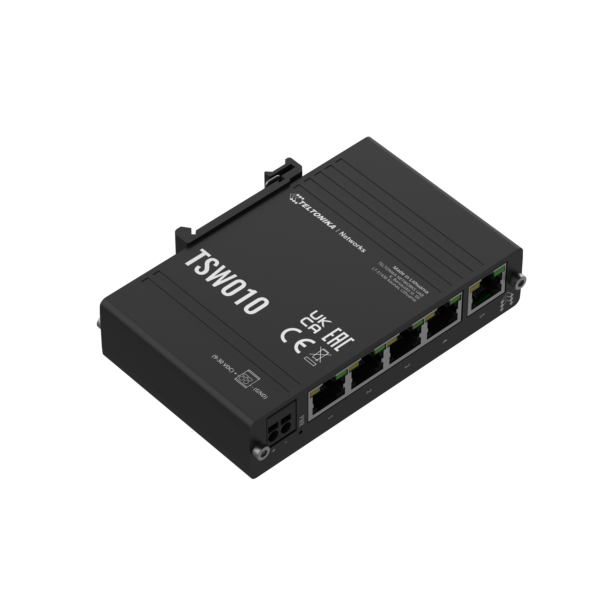

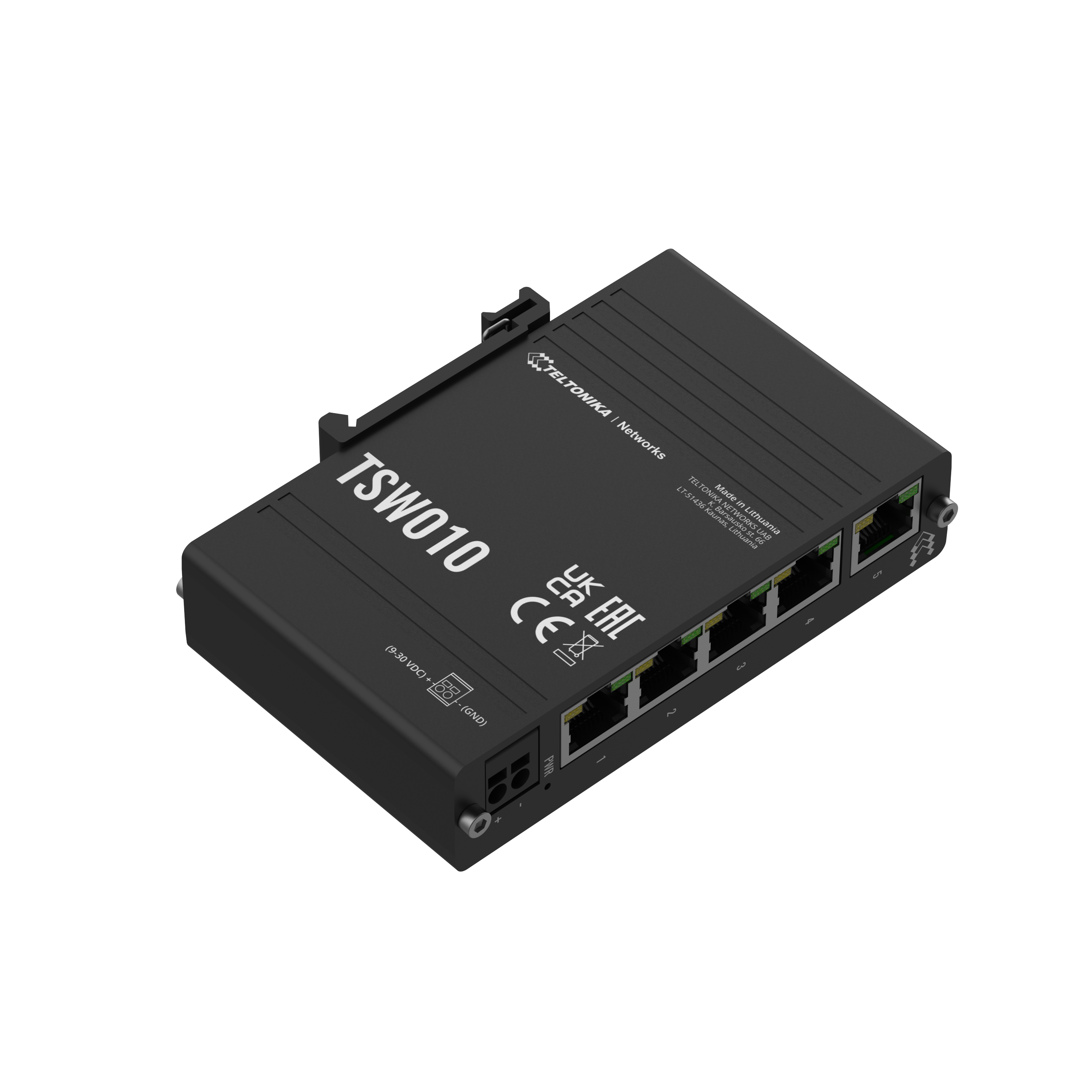

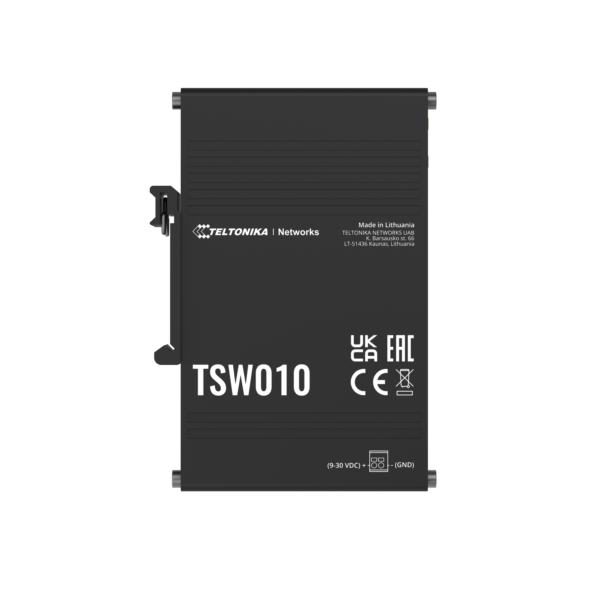

TSW010 5 port unmanaged switch
