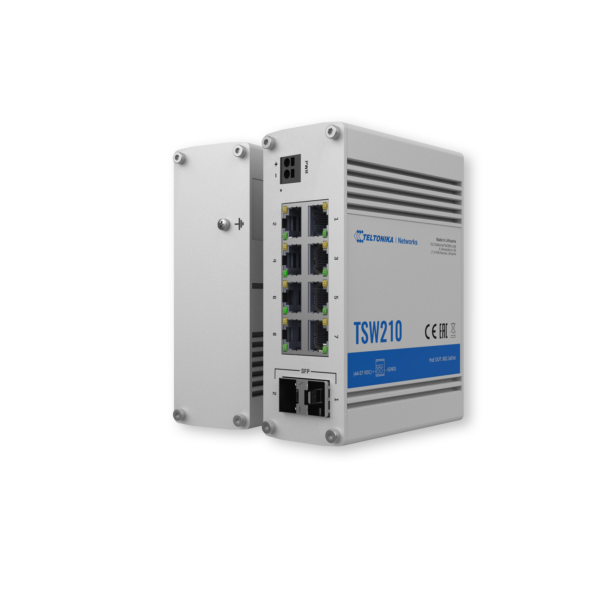

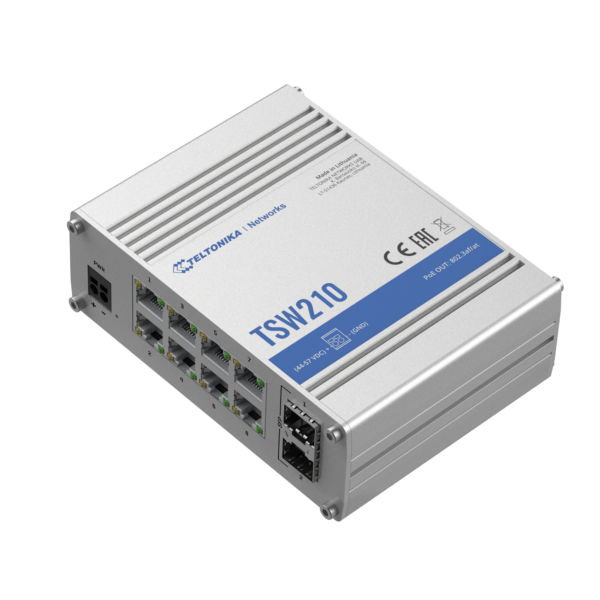

TSW210 8 PORT +2SFP UNMANAGED SWITCH

698,78 kr.

TSW210 offers a great combination of Gigabit Ethernet and SFP.

Eight Ethernet ports enable connecting multiple devices to the network quickly and easily without any further configuration.

SFP allows including far apart devices while maintaining high-speed rates and reliability.

8 på lager (kan bestilles som restordre)

Varenummer (SKU): TSW210000000 Kategori:

Beskrivelse

ETHERNET

  • LAN

    8 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

  • Fiber

    2 x SFP ports

PERFORMANCE SPECIFICATIONS

  • Bandwidth (Non-blocking)

    20 Gbps

  • Packer buffer

    128 KB

  • MAC address table size

    2K entries

  • Jumbo frame support

    9216 bytes

POWER

  • Connector

    2-pin industrial DC power socket

  • Input voltage range

    7-57 VDC

  • Power consumption

    Idle: ~1.03 W / Max: 3.71 W

PHYSICAL INTERFACES (PORTS, LEDS, BUTTONS, SIM)

  • Ethernet

    8 x RJ45 ports, 10/100/1000 Mbps

  • Fiber

    2 x SFP ports

  • Status LEDs

    1 x Power LED, 16 x LAN status LED’s 2 x SFP status LED’s

  • Power

    1 x 2-pin industrial DC power socket

  • Other

    1 x Grounding screw

PHYSICAL SPECIFICATION

  • Casing material

    Full aluminum housing

  • Dimensions (W x H x D)

    132 x 44.2 x 95.1 mm

  • Weight

    500 g

  • Mounting options

    DIN rail or wall mounting (additional kit needed), flat surface placement

OPERATING ENVIRONMENT

  • Operating temperature

    -40 °C to 75 °C

  • Operating humidity

    10% to 90% non-condensing

  • Ingress Protection Rating

    IP30

TSW210 8 PORT +2SFP UNMANAGED SWITCH

Yderligere information

Vægt 0,5 kg
