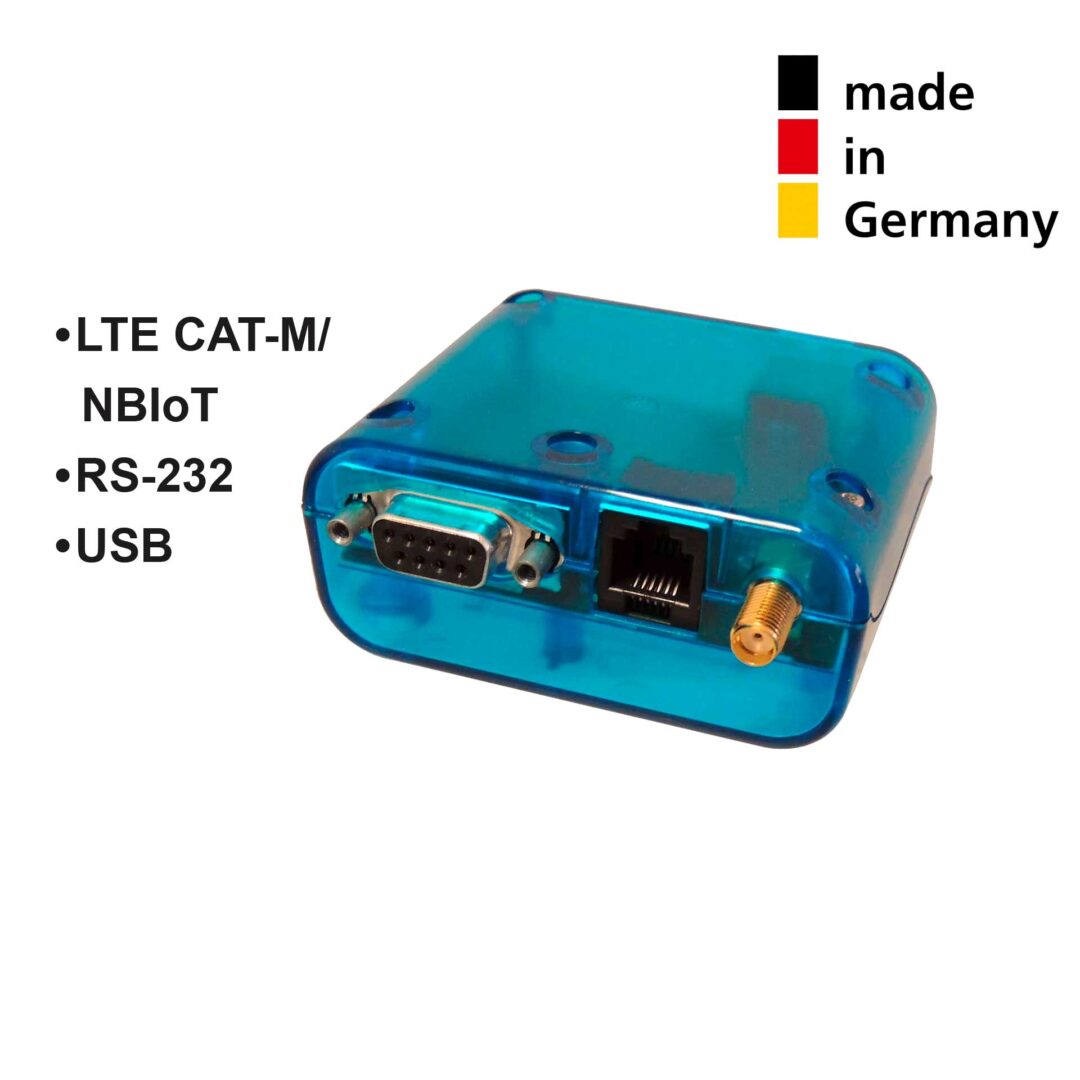

MC93 Terminal USB/RS232 Interface

740.63 kr. + moms

LTE CAT-M/NBIoT(1/2) Modem MC93 Terminal, USB/RS232 Interface

Frequencies:
- LTE Cat M1: Bands: B1/2/3/4/5/8/12/13/18/19/20/25/26/27/28/66/
- Cat NB2: Bands: B1/2/3/4/5/8/12/13/18/19/20/25/28/66/71/85
- EGPRS: 850/900/1800/1900 MHz
- GNSS: GPS/GLONASS/BDS/Galileo/QZSS (optional)
Interfaces: Power (RJ12), RS232 (Sub-D), USB B, SMA antenna connections (GSM/GPS optional), Mini SIM Card Holder/Reader
AT commands control the sending of data via TCP/IP, SMS, FTP(S), HTTP(S), MQTT
Supply voltage: 6 – 30 V DC
Operation temperature -35°C bis +75°C
Housing: ABS
Dimensions: approx. 74 x 33 x 65 mm
Weight: approx. 85 g

Tilgængelig på restordre

Varenummer (SKU): 163358 Kategori: MC9* series

Beskrivelse
Anmeldelser (0)

Beskrivelse

The MC93 data terminal supports LTE Cat M1/Cat NB2/EGPRS and optional GNSS.
In addition, the MC93 is suitable for applications with limited power consumption due to its low power consumption.
