Beskrivelse
| GNSS Antenna | |
|---|---|
| Frequency Range: | 1575.42-1610 MHz |
| Polarization | RHCP |
| Impedance | 50 Ω |
| LNA Gain | 28 dB |
| LNA Noise Figure | < 1.5 dB |
| Supply Voltage | 2.7-5 ±0.5 VDC |
| Current Consumption | < 15 mA |
| LNA V.S.W.R | <1.65 |
| Connector | SMA Male |
| LTE Antenna | |
|---|---|
| Frequency Range: | 850/900/1800/1900/2170 MHz |
| Bandwidth | ±90/280 MHz |
| Polarization | Vertical |
| Gain | 3.5 dBi |
| V.S.W.R: | <1.5:1 |
| Impedance: | 50 Ω |
| Connector: | SMA Male |
| WiFi Antenna | |
|---|---|
| Frequency Range: | 2350-2500 MHz |
| Bandwidth | ±100 MHz |
| Polarization | Vertical |
| Gain | 2.5 dBi |
| V.S.W.R: | <1.5:1 |
| Impedance: | 50 Ω |
| Connector: | RP SMA Male |
| Mechanical/Environmental | |
|---|---|
| Mounting Method: | Screw |
| Radome Ingress Protection rating: | IP67 |
| Radome Material: | ABS |
| Weight: | <250g |
| Housing Dimensions: | Ø 80×15 mm |
| Cable: | 3x RG174, 3000 mm |
| RoHS Compliant: | Yes |

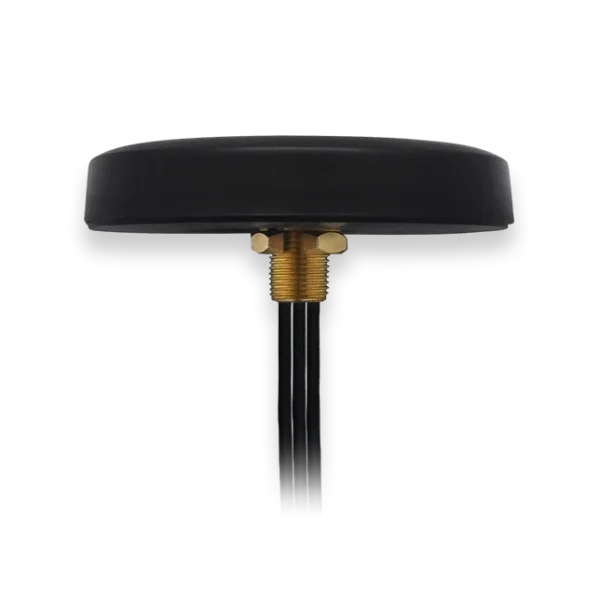

COMBO SISO MOBILE/GNSS/WIFI ROOF SMA ANTENNA
