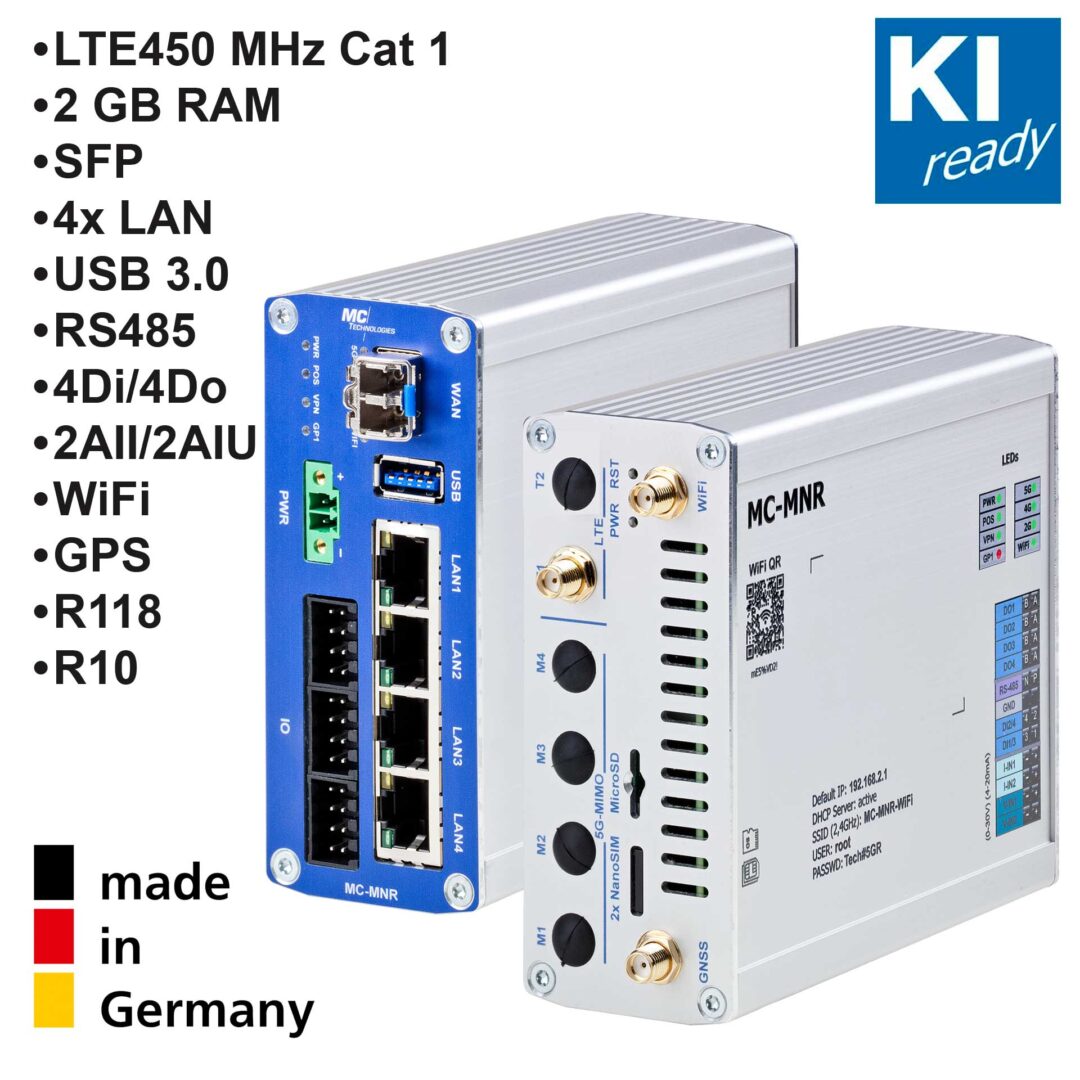

MC-MNR 450 4Port
6281.25 kr. + moms
450MHz/GPS/WLAN/SFP, 4ETH/USB/RS485,Dual SIM, 4DI/4DO/2AII/2AIU
- Frequencies:
- LTE: B1, B3, B5, B7, B8, B20, B28, B31, B72
- GSM: B3, B8
- Dimensions: 44 x 105 x 124 mm
- Weight: approx. 500 g
- Supply voltage: 8 to 30 V DC
- Operating temperature: -40 °C to +70 °C
- Housing: aluminium, protection class IP20
- Mounting: Top-hat rail or wall mounting
Controller, memory and operating system:
- Processor: ARMv8, 64bit, Cortex A5x, Quad Core, up to 2 GHz
- DRAM: 2 GB LPDDR4
- Memory: 16 GB eMMC
- Operating system: OpenWRT 24 (free, programmable and configurable embedded Linux system)
- Internet protocol: IPv4, IPv6
Interfaces:
- Network: 4x RJ45 + SFP
- USB: USB 3.0
- RS-485: On IO interface
- Analogue: 2x 0-30 V, 2x 4-20 mA
- Digital: 4 inputs and 4 outputs (each 0-30 V)
- External memory: Micro SD card slot
- GNSS: GPS, GLONASS, BDS, Galileo and QZSS (Quectel LC76G)
- WLAN: 2,4 GHz
- SIM: 2x Nano-SIM (eSIM optional)
Standards and security:
- Complies with the EMC Directive 2014/30/EU (CE), optional: ECE R10
- Security: TPM2.0, Secure Boot, Watchdog, IEC 62443-4.1, Open VPN, IPSec
Tilgængelig på restordre
Beskrivelse
The MC MNR 450 4-Port Multi Network Router has been specially developed for demanding applications in industry and infrastructure. As an LTE450 MHz Cat 1 router, it offers reliable and uninterrupted data communication – ideal for controlling and monitoring decentralised systems. The Multi Network Router uses several mobile networks in parallel and ensures maximum availability and stable connections thanks to mobile network redundancy, even in critical infrastructures.
With extensive security functions such as OpenVPN and IPSec, the router guarantees secure data transmission and meets the requirements of sensitive areas of application. The MC MNR 450 4-port industrial router is equipped for modern applications and supports common protocols such as Modbus (for industrial automation), IEC-60870-5-104 (for energy distribution networks) and MQTT (for IoT communication). The simultaneous support of IPv4 and IPv6 ensures future-proofing and maximum flexibility.
The industrial router is supported by a powerful quad-core processor with up to 2 GHz in combination with 2 GB RAM and 16 GB internal memory – perfect for data-intensive tasks. The pre-installed OpenWRT 24 operating system enables individual customizations and extensions.
The robust aluminium housing in accordance with IP20 and the extended temperature range from -40 °C to +70 °C make the Multi Network Router particularly resistant – even under extreme environmental conditions, performance remains constant.
