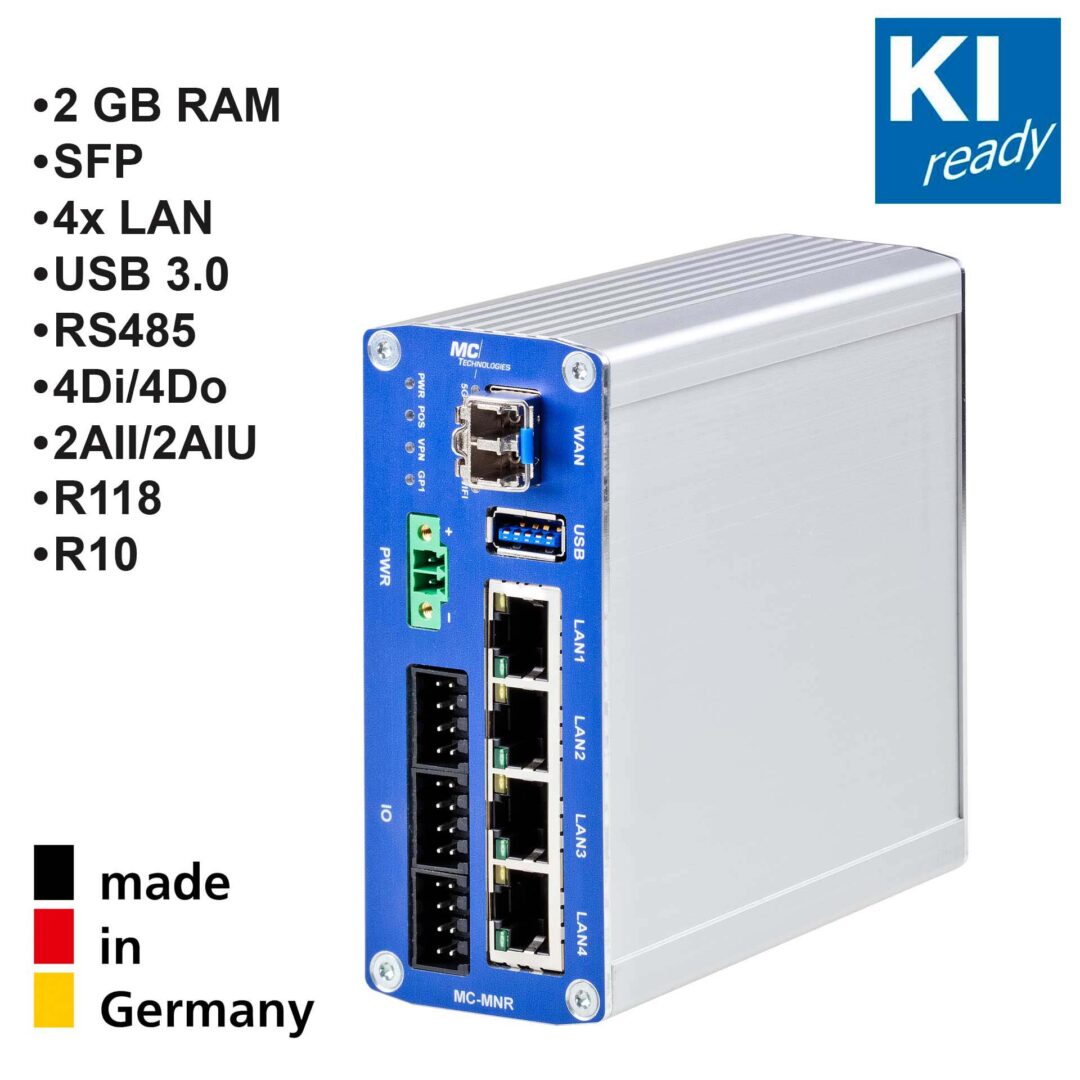

MC-MNR LAN 4Port
5906.25 kr. + moms
LAN/WIFI, 4ETH/USB/RS485, 4DI/4DO/2AII/2AIU
- Dimensions: 44 x 105 x 124 mm
- Weight: approx. 500 g
- Supply voltage: 8 to 30 V DC
- Operating temperature: -40 °C to +70 °C
- Housing: aluminium, protection class IP20
- Mounting: Top-hat rail or wall mounting
Controller, memory and operating system:
- Processor: ARMv8, 64bit, Cortex A5x, Quad Core, up to 2 GHz
- DRAM: 2 GB LPDDR4
- Memory: 16 GB eMMC
- Operating system: OpenWRT 24 (free, programmable and configurable embedded Linux system)
Interfaces:
- USB 3.0
- RS-485: On IO interface
- Analogue: 2x 0-30 V, 2x 4-20 mA
- Digital: 4 inputs and 4 outputs (each 0-30 V)
- External memory: Micro SD card slot
- LAN: 4x RJ45 10/100/1000 base-t
- WAN: SFP Cage
- WLAN: 2,4 GHz
Tilgængelig på restordre
Beskrivelse
The MC MNR LAN 4 Port Router is a powerful, compact solution for industrial communication and IoT applications via LAN and WLAN. With a robust aluminium housing (IP20), operating temperatures from -40 °C to +70 °C and DIN rail or wall mounting, it is ideal for harsh industrial environments.
A quad-core ARMv8 processor (up to 2 GHz), 2 GB RAM and 16 GB eMMC memory provide sufficient performance for data-intensive processes. A wide range of interfaces – including 4x RJ45, 1x SFP, USB 3.0, RS-485, WLAN (2.4 GHz) as well as digital and analog I/Os – enable flexible application options.
OpenWRT 24 as the operating system allows individual configuration. TPM 2.0, Secure Boot and security standards in accordance with IEC 62443-4.1 ensure a high level of IT security. The router complies with the EMC directive (CE) and is optionally ECE R10-certified – ideal for industry, M2M, smart infrastructure and industrial IoT.
