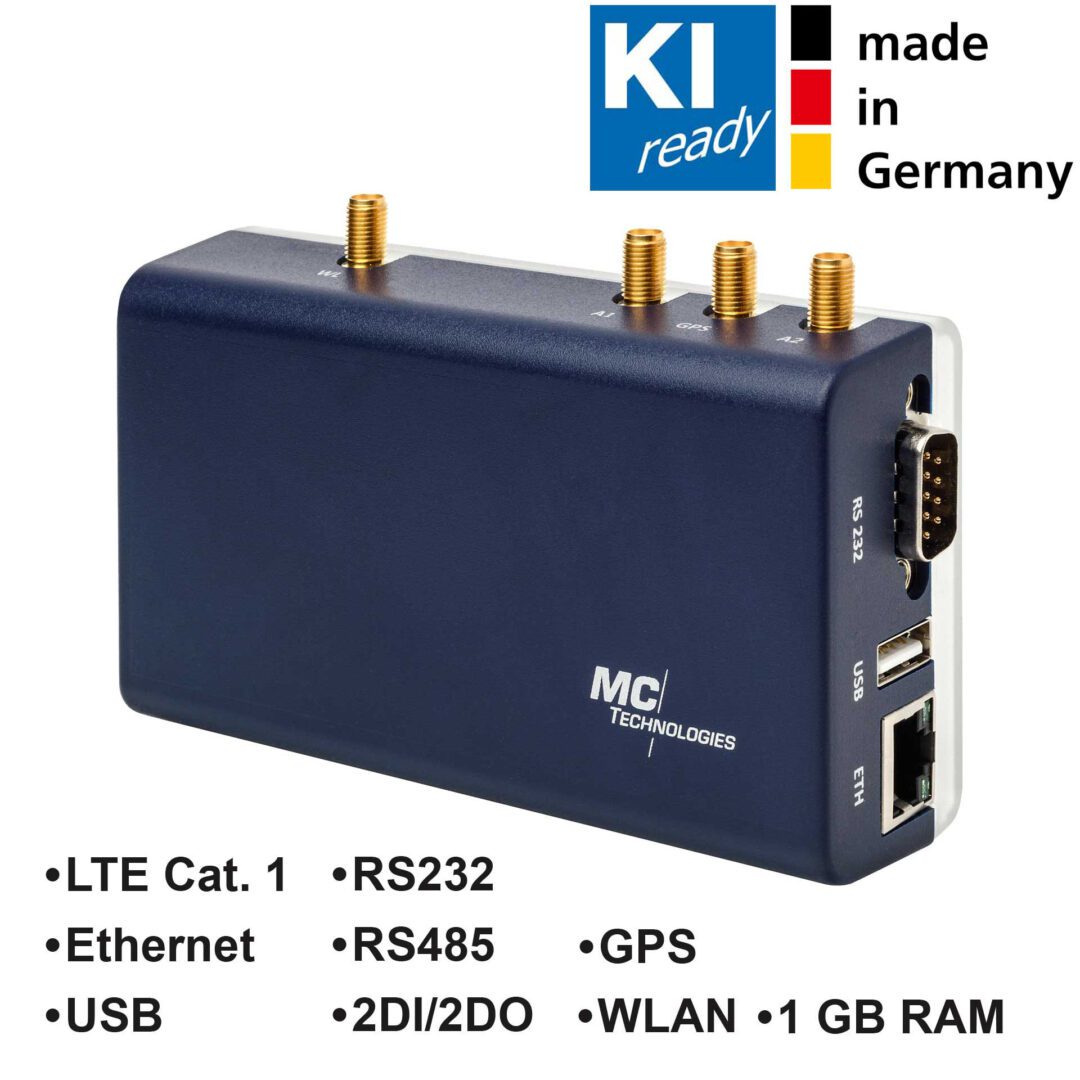

MC100 Gateway GPS WLAN

MC100 Gateway GPS WLAN

2694.09 kr. + moms

LTE CAT1 Gateway with GPS/WiFi, 1ETH/USB/RS-232/RS-485, 2DI/2DO, 1GB RAM

  • LTE (4G) Cat1: Bands: 1, 3, 5, 7, 8, 20
  • WCDMA (3G): Bands: 1, 5, 8
  • GSM/GPRS/EDGE (2G): Bands: 3, 8
  • Dimensions (W x H x D): 120 x 75 x 35mm
  • Weight: approx. 140 g
  • Supply voltage: 10 to 30V DC
  • Operating temperature: -20°C to +70°C
  • Housing: plastic
  • Mounting: Wall mounting / DIN rail mounting

Controller, memory and operating system

  • ARM Cortex-A7 NXP i.MX 6 UltraLite, 528 MHz
  • 1 GB RAM
  • 4 GB Flash
  • OpenWrt Linux
  • Programmable with C/C++, Python™, Java™, Node-RED™ or others
  • Basic configuration via web interface, SSH

Interfaces

  • 10/100 MBit/s Ethernet
  • USB 2.0
  • RS232
  • RS485
  • 2 digital IN, 2 digital OUT
  • CAN 2.0B
  • GPS
  • WLAN
  • Micro SD card, up to 64 GB (internal)
  • Power: Plug-in screw terminal
  • Mini SIM
  • 4 SMA antenna connectors

Tilgængelig på restordre

Varenummer (SKU): 193354 Kategori:

Beskrivelse

The 4G Cat1 LTE IoT gateway with GPS and WLAN offers a reliable and fast internet connection and has a wide range of connection options such as Ethernet, USB, RS232, RS485 and CAN.

Features MC100 Gateway GPS/WLAN with 1 GB RAM:

  • 4G Cat1 LTE connectivity for reliable and fast wireless data communication.
  • Integrated Quectel EC21-E module for reliable mobile communication and comprehensive connectivity.
  • Pre-installed Node-RED™ enables easy creation and management of IoT applications and data flow programs.
  • OpenWrt 24.10-based Linux distribution that enables the use of a variety of open source resources and flexible customization to specific requirements
  • The generous memory of 1 GB RAM makes the gateway more powerful and faster.

The MC100 Gateway GPS/WLAN is suitable for various applications such as telemetry, location monitoring, remote monitoring and other IoT applications.

We recommend our remote management and monitoring software M2MGate for VPN remote access, update management, device configurations and device management of device fleets for the MC100.
