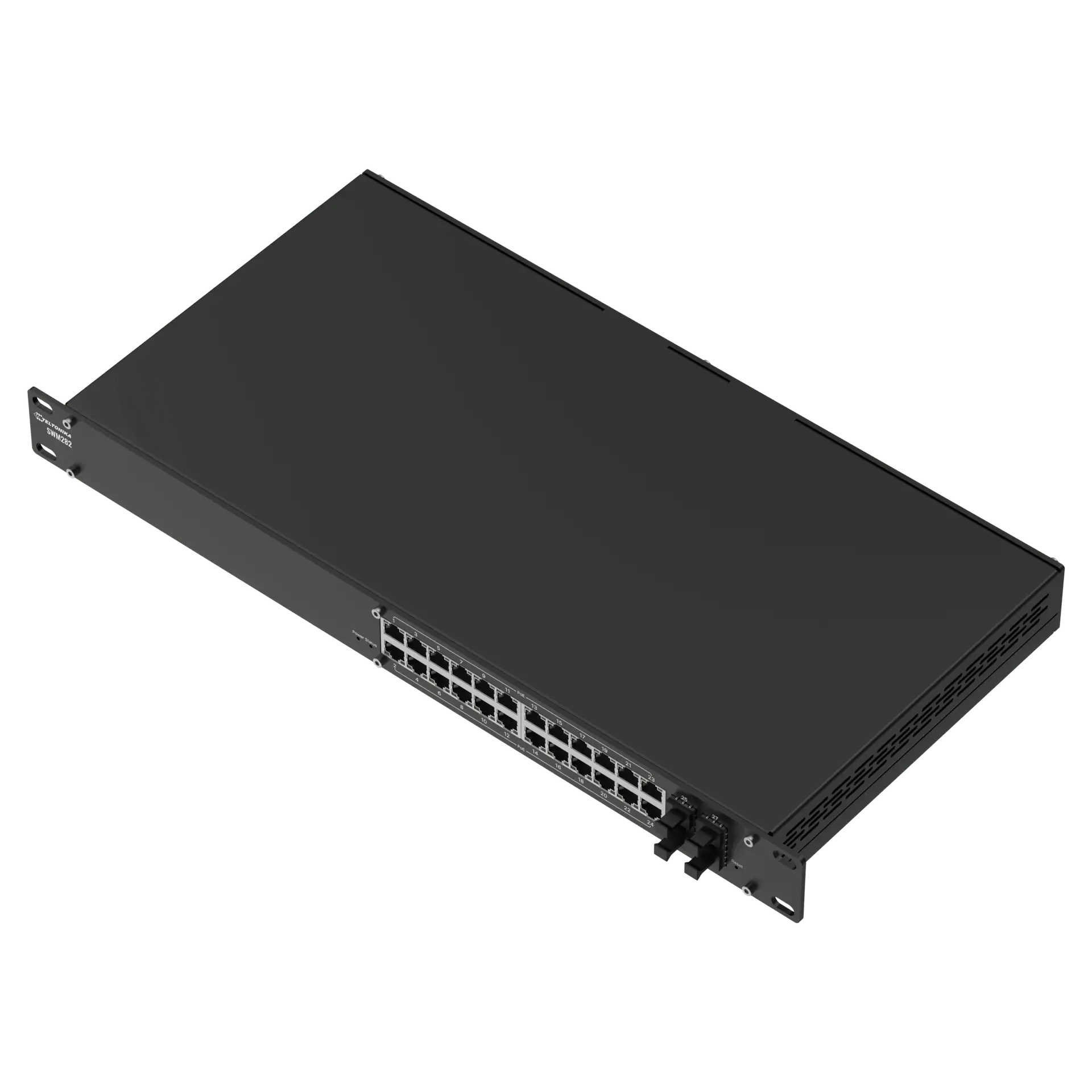

Name: SWM282 PoE+ managed switch
Brand: Teltonika
SKU: SWM282000000
Availability: BackOrder

Beskrivelse

The SWM282 is a high-capacity L2 managed switch with enhanced L3 capabilities, built to simplify network control while delivering power and connectivity at scale. It features 24 PoE+ ports, supplying up to 30 W per port with a total power budget of 300 W, and 4 SFP ports. With support for PROFINET and other industrial protocols, this 24-port switch is an ideal choice for enterprise networks and IIoT solutions.

Ethernet

Fiber

4 x SFP ports
IEEE 802.3 series standards

802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
ETH

Multi-layer managed 24 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

INDUSTRIAL PROTOCOLS

Profinet

Profinet Class B conformance (available with optional order code)

Services

EtherNet/IP

Yes
SNMP V2, V3

Yes
LLDP

Yes
Network Management

802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN

Network

Routing

Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP)
MRP

MRP client role, MRP manager role
L2 features

Loop protection, Forwarding table, VLAN, STP/RSTP
DHCP

DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards
Port Settings

Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring
L3 Features

Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address

QoS

QOS

Port priority, DSCP priority, 802.1p priority, TOS
Scheduling method

SP/WFQ/WRR
Bandwidth control

Rate limiting, storm control
Traffic Shaper

Port-based shaping

Diagnostics

Tools

Cable diagnostic, ping, traceroute, nslookup
Ping reboot

Capability to restart PoE in a specific port

Security

Authentication

PAM — preshared key, Radius & TACACS+, IP & login attempts block
VLAN

Port VLAN separation
802.1x

Port-based network access control client and server
MAC filtering support

Allow specific MAC addresses to connect through specified ports, ignore unauthorized or disable the port if an unauthorized MAC address is detected

API

Teltonika Networks Web API (beta) support

Expand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

System Characteristics

CPU

Realtek, single core, 500MHz, MIPS-4KEc
RAM

128MB, DDR3
FLASH storage

16 MB serial flash

Firmware / Configuration

WEB UI

Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA

Update FW
RMS

Update FW/configuration for multiple devices at once
Keep settings

Update FW without losing current configuration
Factory settings reset

A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configuration

FIRMWARE CUSTOMISATION

Operating system

TSWOS (OpenWrt based Linux OS)
Supported languages

Busybox shell, Lua, C, C++
Development tools

SDK package with build environment provided
Package Manager

The Package Manager is a service used to install additional software on the device

Performance Specifications

Bandwidth (Non-blocking)

56 Gbps
Forwarding rate

83.33 Mpps
Packet buffer

512 KB
MAC address table size

8K entries
Jumbo frame support

10000 bytes

POE OUT

PoE+ ports

Ports 1-24
PoE standards

IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A
PoE Max Power per Port (at PSE)

30 W
Total PoE Power Budget (at PSE)

300 W

Power

Connector

C14 connector
Input voltage range

100-240 VAC, 50/60 Hz
Power consumption

Idle: 9 W / Max: 330 W / PoE Max: 300

Physical Interfaces

Ethernet

24 x RJ45 ports, 10/100/1000 Mbps
Fiber

4 x SFP ports
Status LEDs

1 x Power LED, 48 x ETH status LEDs, 1 x Status LED, 4 x SFP status LEDs
Power

1 x C14 connector
Reset

Software reset button
Other

1 x Grounding screw
