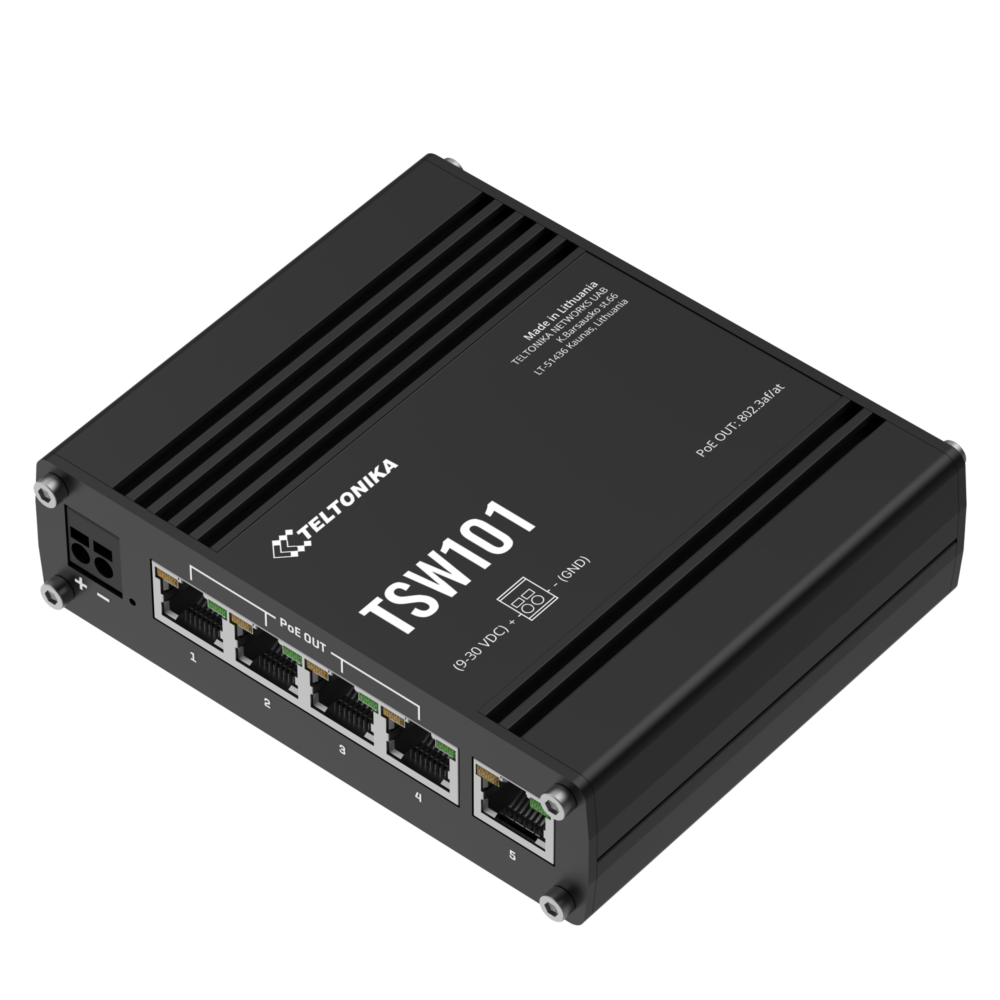

TSW101 Automotive Ethernet Switch

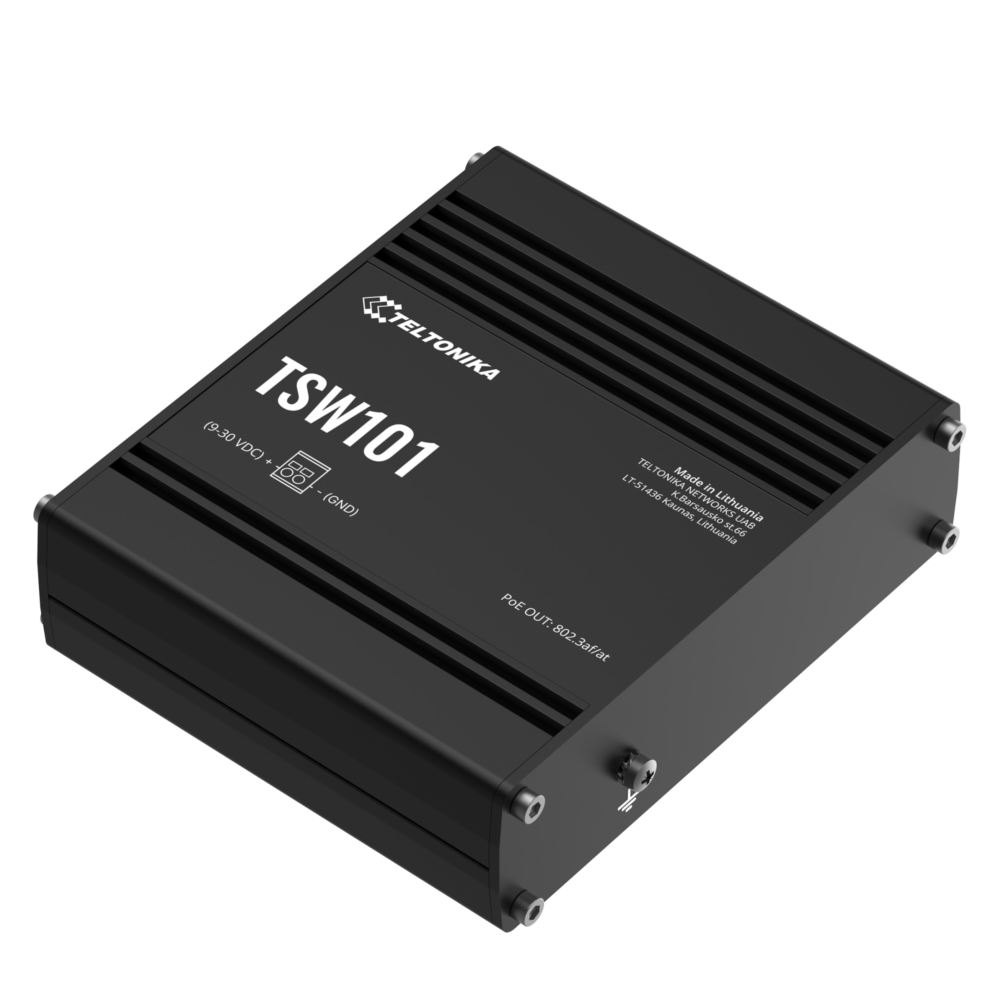

TSW101 Automotive Ethernet Switch - Billede 2
TSW101 Automotive Ethernet Switch - Billede 3

TSW101 Automotive Ethernet Switch

Log ind for at se priser

STANDARD PACKAGE*

  • TSW101
  • QSG (Quick Start Guide)
Varenummer (SKU): TSW101000000 Kategori:

Beskrivelse

https://teltonika-networks.com/products/ethernet-switches/tsw101

ETHERNET

  • ETH

    5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

  • IEEE 802.3 series standards

    802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

POE OUT

  • PoE ports

    Port 1- 4

  • PoE standards

    802.3af and 802.3at Alternative B

  • PoE Max Power per Port (at PSE)

    30 W

  • Total PoE Power Budget (at PSE)

    60 W

  • Maximum Ethernet cable length

    100 m

PERFORMANCE SPECIFICATIONS

  • Bandwidth (Non-blocking)

    10 Gbps

  • Packer buffer

    128 KB

  • MAC address table size

    2K entries

  • Jumbo frame support

    9216 bytes

POWER

  • Connector

    2-pin industrial DC power socket

  • Input voltage range

    9 – 30 VDC

  • PoE-out input voltage range

    9 – 30 VDC

  • Power consumption

    Idle: 0.64 W / Max: 2.31 W / PoE Max: 62.3 W

PHYSICAL INTERFACES

  • Ethernet

    5 x RJ45 ports, 10/100/1000 Mbps

  • Status LEDs

    1 x Power LED, 10 x ETH status LEDs

  • Power

    1 x 2-pin industrial DC power socket

  • Other

    1 x Grounding screw

PHYSICAL SPECIFICATION

  • Casing material

    Aluminium housing

  • Dimensions (W x H x D)

    115 x 32 x 95 mm

  • Weight

    384 g

  • Mounting options

    DIN rail or wall mounting (additional kit needed), flat surface placement

OPERATING ENVIRONMENT

  • Operating temperature

    -40 °C to 75 °C

  • Operating humidity

    10% to 90% non-condensing

  • Ingress Protection Rating

    IP30

REGULATORY & TYPE APPROVALS

  • Regulatory

    CE, REACH, RoHS, WEEE

    TSW101 CE

    TSW101 UKCA

    TSW101 FCC

    TSW101 IC

    TSW101 CB

    TSW101 RCM

    E-Mark

SAFETY

  • Standards

    EN IEC 62368-1:2020+A11:2020

Yderligere information

Vægt 5 kg
