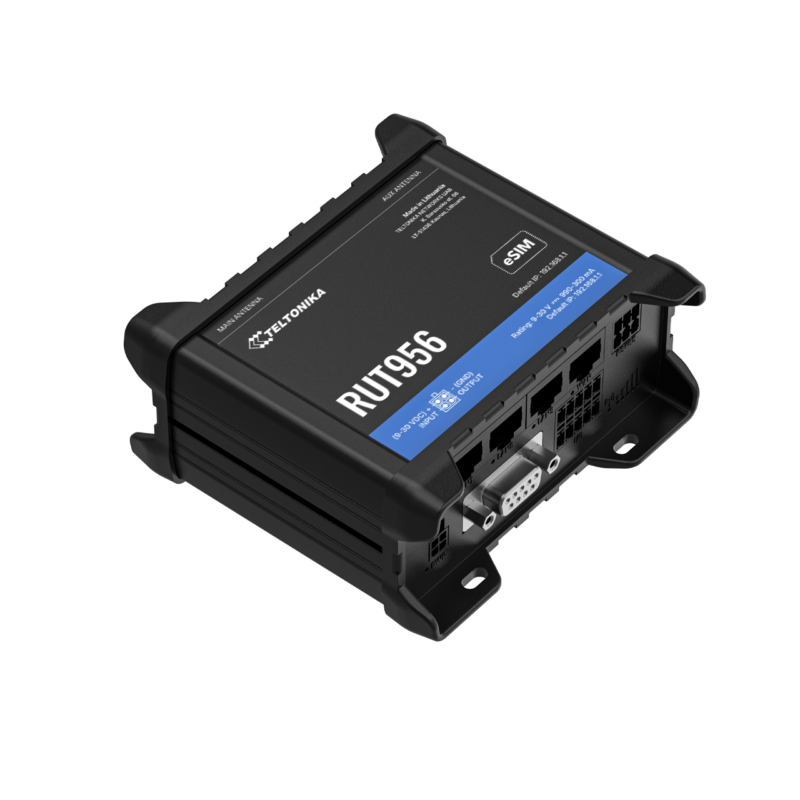

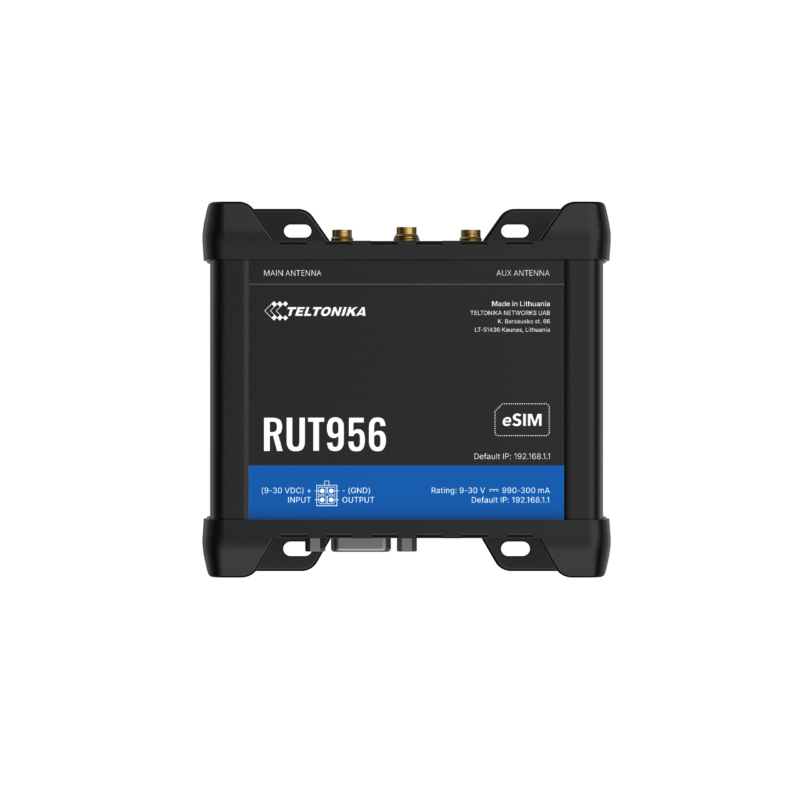

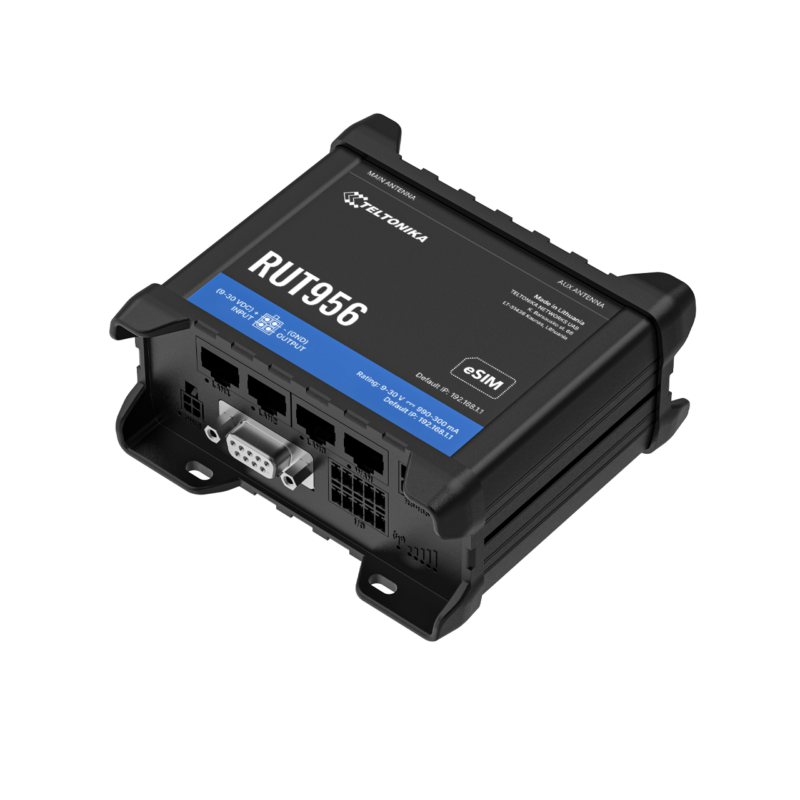

RUT956 GLOBAL ESIM

Beskrivelse

Mobile

• Mobile module
• 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
• 3GPP Release: Release 11
• eSIM (consumer type): profile download and removal operations, up to 7 eSIM profiles; does not include data plans (feature availability varies by order code)
• SIM switch: Dual SIM and eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection (feature availability varies by order code)
• Status: IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
• SMS: SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
• USSD: Supports sending and reading Unstructured Supplementary Service Data messages
• Block/Allow list: Operator block/allow list (by country or separate operators)
• Multiple PDN: Possibility to use different PDNs for multiple network access and services
• Band management: Band lock, Used band status display
• SIM PIN code management: enables setting, changing, or disabling the SIM card’s PIN
• APN: Auto APN
• Bridge: Direct connection (bridge) between mobile ISP and device on LAN
• Passthrough: Router assigns its mobile WAN IP address to another device on LAN

Wireless

• Wireless mode: 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
• Wi-Fi security: WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
• SSID/ESSID: SSID stealth mode and access control based on MAC address
• Wi-Fi users: Up to 100 simultaneous connections
• Wireless connectivity features: Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
• Wireless MAC filter: Allowlist, blocklist
• Wireless QR code generator: Once scanned, a user will automatically enter your network without needing to input login information
• TravelMate: Forward Wi-Fi hotspot landing page to a subsequent connected device

Ethernet

• WAN: 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
• LAN: 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Network

• Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP()S, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
• VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
• Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
• Firewall: Port forward, traffic rules, custom rules, TTL target customisation
• Firewall status page: View all your Firewall statistics, rules, and rule counters
• Port management: View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
• Network topology: Visual representation of your network, showing which devices are connected to which other devices
• DHCP: Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
• QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
• DDNS: Supported >77 service providers, others can be configured manually
• DNS over HTTPS: DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
• Network backup: Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
• Load balancing: Balance Internet traffic over multiple WAN connections
• Hotspot: Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
• Hotspot 2.0: Hotspot 2.0 is a Wi-Fi standard that enables seamless, secure, and automatic connection to trusted wireless networks
• SSHFS: Possibility to mount remote file system via SSH protocol
• VRF support: Initial virtual routing and forwarding (VRF) support
• Traffic Management: Real-time monitoring, wireless signal charts, traffic usage history
• Port Mirroring: Mirroring network traffic on Ethernet ports for monitoring and analysis

Security

• Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
• Firewall: Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN: Port and tag-based VLAN separation
• Mobile quota control: Mobile data limit, customizable period, start time, warning limit, phone number
• WEB filter: Block list for blocking out unwanted websites, allow list for specifying allowed sites only
• Access control: Flexible access control of SSH, Web interface, CLI and Telnet
• Certificate Manager: Certificate creation tool allows to create CA, server, client, let’s encrypt, SCEP certificates

VPN

• OpenVPN: Multiple clients and a server can run simultaneously, 27 encryption methods
• OpenVPN Encryption: DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
• IPsec: XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
• GRE: GRE tunnel, GRE tunnel over IPsec support
• PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
• Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
• DMVPN: Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
• SSTP: SSTP client instance support
• ZeroTier: ZeroTier VPN client support
• WireGuard: WireGuard VPN client and server support
• Tinc: Tinc offers encryption, authentication and compression in it’s tunnels. Client and server support.

Industrial Protocols & Gateways

• BacNET: Router; RS485, TCP; support for multiple BACnet/IP interfaces, Network number assignment, Preconfigured BDT entries for BBMD
• OPC UA: Client, Server; TCP
• MQTT Gateway (Modbus MQTT Gateway): Allows sending commands and receiving data from MODBUS Server through MQTT broker
• MODBUS: Server, Client; RTU (RS232, RS485), TCP, USB; MODBUS TCP custom register block requests (read/write to a file inside the router); supported data formats: 8-bit INT/UINT, 16-bit INT/UINT (MSB/LSB), 32-bit float/INT/UINT (ABCD, DCBA, CDAB, BADC), HEX, ASCII
• Data to Server: HTTP(S), MQTT, Azure MQTT
• DNP3: Station, Outstation; RS232, RS485, TCP, USB
• DLMS/COSEM: DLMS client; RS232, RS485, TCP
• API: Teltonika Networks Web API (beta) support

Monitoring & Management

• WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
• FOTA: Firmware update from server, automatic notification
• SSH: SSH (v1, v2)
• SMS: SMS status, SMS configuration
• Call: Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
• TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
• MQTT: MQTT Broker, MQTT publisher
• SNMP: SNMP (v1, v2, v3), SNMP Trap, Brute force protection
• JSON-RPC: Management API over HTTP/HTTPS
• RMS: Teltonika Remote Management System (RMS)

IoT Platforms

• ThingWorx: monitoring of WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
• Cumulocity – Cloud of Things: monitoring of Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength; reboot and firmware upgrade actions
• Azure IoT Hub: configurable with Data to Server; Direct method support for RutOS API calls; Plug and Play integration with Device Provisioning Service (zero-touch device provisioning)
• AWS IoT Core: utility to interact with AWS cloud platform; Jobs support: call the device’s API using AWS Jobs functionality

System Characteristics

• CPU: Mediatek, 580 MHz, MIPS 24KEc
• RAM: 128 MB, DDR2
• FLASH storage: 16 MB, SPI Flash

Firmware & Customisation

• Firmware/Configuration (WEB UI): Update FW from file, check FW on server, configuration profiles, configuration backup
• FOTA: Update FW
• RMS: Update FW/configuration for multiple devices at once
• Keep settings: Update FW without losing current configuration
• Factory settings reset: A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configuration
• Operating system: RutOS (OpenWrt based Linux OS)
• Supported languages: Busybox shell, Lua, C, C++
• Development tools: SDK package with build environment provided
• GPL customization: Create your own custom, branded firmware and web page application by changing colours, logos, and other elements
• Package Manager: Install additional software on the device

Location Tracking

• GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS
• Coordinates: GNSS coordinates via WebUI, SMS, TAVL, RMS
• NMEA: NMEA 0183
• NTRIP: NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
• Server software: Supported server software TAVL, RMS
• Geofencing: Configurable multiple geofence zones

Serial

• RS232: DB9 connector, RS232 (with RTS, CTS flow control)
• RS485: Full Duplex (4 wires) and Half Duplex (2 wires), 300-115200 baud rate
• Serial functions: Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client

USB

• Data rate: USB 2.0
• Applications: Samba share, USB-to-serial
• External devices: Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
• Storage formats: FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input/Output

• Input: 1 x digital dry input (0 – 3 V), 1 x digital galvanically isolated input (0 – 30 V), 1 x analog input (0 – 24 V; with 4-20 mA capability), 1 x Digital non-isolated input (on 4-pin power connector, 0 – 5 V detected as logic low, 8 – 30 V detected as logic high)
• Output: 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)
• Events: Email, RMS, SMS
• Configurable I/O: Allows to set certain I/O conditions to initiate event

SD Card

• SD Card support depends on the production batch: RUT956 ****** from batch 27; RUT956 A***** from batch 39
• Physical size: Micro SD (internal)
• Applications: Samba share, Storage Memory Expansion, DLNA
• Capacity: Up to 2 TB
• Storage formats: FAT32, NTFS, ext2, ext3, ext4

Power

• Connector: 4-pin industrial DC power socket
• Input voltage range: 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
• PoE (passive): Passive PoE over spare pairs; power through LAN1 port; not compatible with IEEE802.3af/at/bt; Mode B; 9 – 30 VDC
• Power consumption: < 2 W idle, < 7 W Max

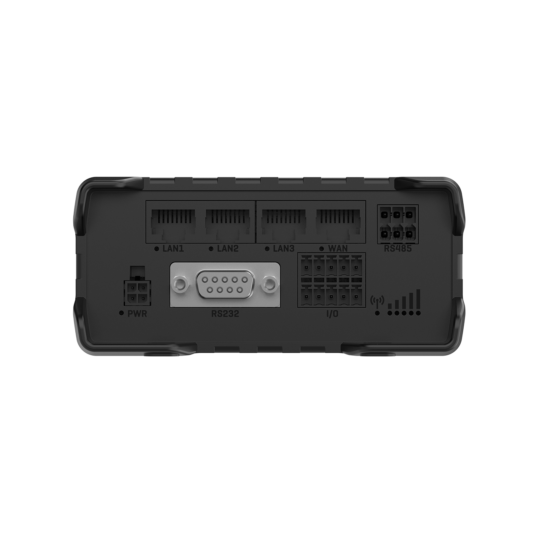

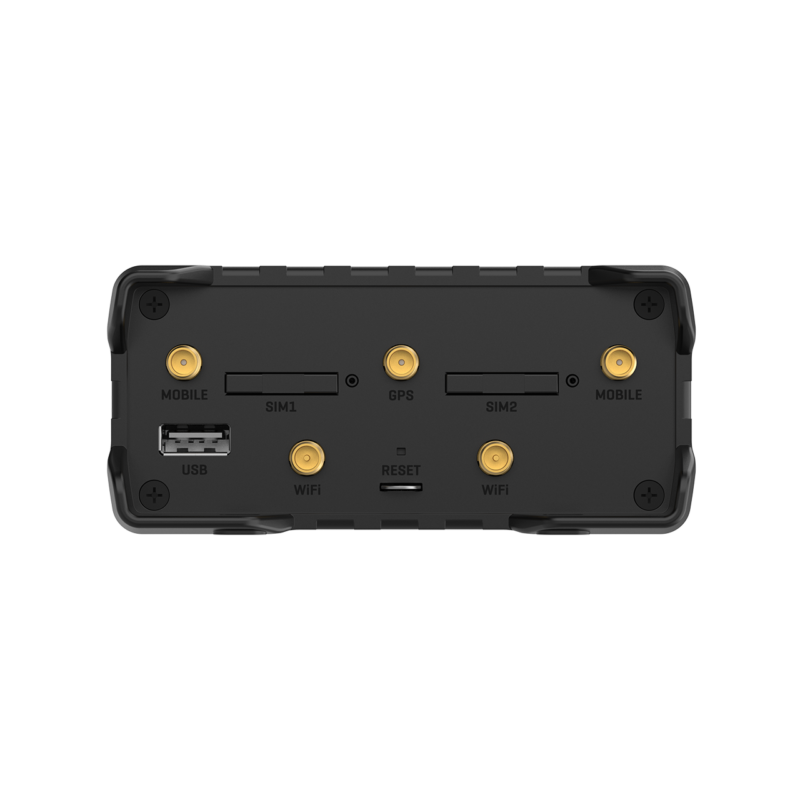

Physical Interfaces

• Ethernet: 4 x RJ45 ports, 10/100 Mbps
• I/O’s: 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector (available from HW revision 1600)
• Status LEDs: 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power
• SIM: 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, external SIM holders, eSIM
• Power: 1 x 4-pin power connector
• Input/output: 1 x 10-pin industrial socket for inputs/outputs
• Antennas: 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
• USB: 1 x USB A port for external devices
• RS232: 1 x DB9 socket
• RS485: 1 x 6-pin industrial socket
• Reset: Reboot/User default reset/Factory reset button

Physical Specification

• Casing material: Aluminium housing, plastic panels
• Dimensions (W x H x D): 110 x 50 x 100 mm
• Weight: 287 g
• Mounting options: DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

• Operating temperature: -40 °C to 75 °C
• Operating humidity: 10% to 95% non-condensing
• Ingress Protection Rating: IP30

Regulatory & Type Approvals

• Regulatory: CE, UKCA, ANRT, Kenya, CITC, ICASA, FCC, IC, PTCRB, Anatel, RCM, Giteki, IMDA, ECE R118, E-mark, UL/CSA Safety, CB, RoHS, REACH, NCC, C1D2
• Operator: AT&T, Verizon, T-Mobile

EMC Emissions & Immunity

• Standards: EN 55032:2015 + A11:2020; EN 55035:2017 + A11:2020; EN IEC 61000-3-2:2019 + A1:2021; EN 61000-3-3:2013 + A1:2019; EN 301 489-1 V2.2.3; EN 301 489-17 V3.2.4; EN 301 489-19 V2.1.1; EN 301 489-52 V1.2.1
• ESD: EN 61000-4-2:2009
• Radiated Immunity: EN 61000-4-3:2020
• EFT: EN 61000-4-4:2012
• Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014 + A1:2017
• CS: EN 61000-4-6:2014
• DIP: EN 61000-4-11:2020
• RF Standards: EN 300 328 V2.2.2; EN 301 511 V12.5.1; EN 301 908-1 V15.2.1; EN 301 908-2 V13.1.1; EN 301 908-13 V13.2.1; EN 303 413 V1.1.1

Safety (Ordinary Locations)

• Standards: CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017; RCM: AS/NZS 62368.1:2022; CB: IEC 62368-1:2018; UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)

Safety (Hazardous Locations)

• Standards: UL/CSA Safety: UL 121201 (9th Ed., Rev. April 1, 2021), CAN/CSA C22.2 No. 213 (3rd Ed. April 2021)
• Hazardous Environments: Class I, Division 2, Groups A, B, C, D; Class I, Zone 2, Group IIC
• Temperature rating: -40°C ≤ Ta ≤ 75°C, T4, IP30
