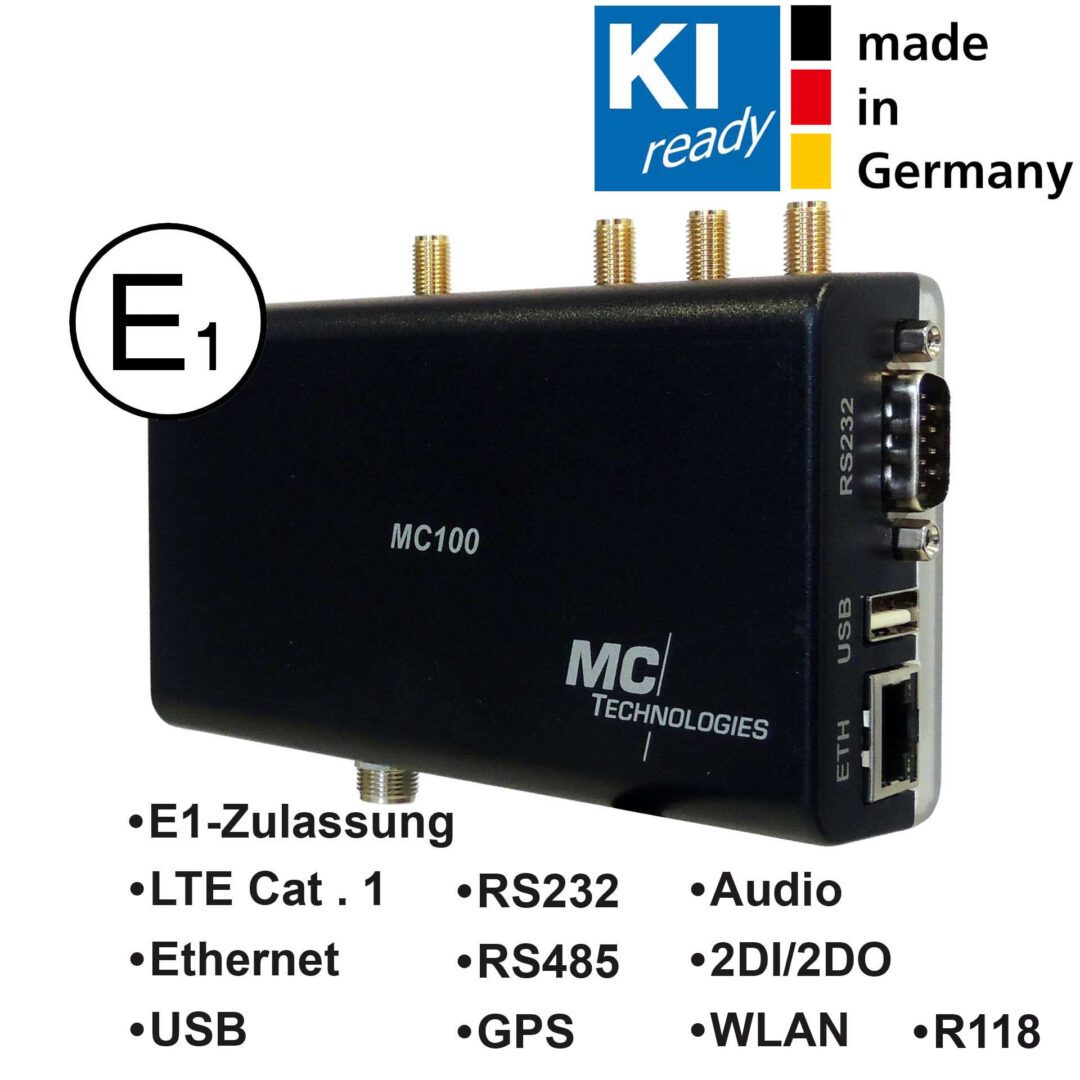

MC100 Gateway Audio

3865.78 kr. + moms

LTE CAT1 Gateway with GPS/WiFi and Audio, 1ETH/ USB/RS-232/RS-485/ 2DI/2DO, E1 approval

LTE (4G) Cat1: Bands: 1, 3, 5, 7, 8, 20
WCDMA (3G): Bands: 1, 5, 8
GSM/GPRS/EDGE (2G): Bands: 3, 8
Dimensions (W x H x D): 120 x 75 x 35mm
Weight: approx. 160 g
Supply voltage: 10 to 30V DC
Operating temperature: -20°C to +70°C
Housing: plastic
Mounting: Wall mounting / DIN rail mounting
E1 approval, ECE R10 and R118

Controller, memory and operating system

ARM Cortex-A7 NXP i.MX 6 UltraLite, 528 MHz
512 MB RAM (Optional with 1 GB RAM)
4 GB Flash
OpenWrt Linux
Programmable with C/C++, Python™, Java™, Node-RED™ or others
Basic configuration via web interface, SSH

Interfaces

10/100 MBit/s Ethernet
USB 2.0
RS232
RS485
2 digital IN, 2 digital OUT
CAN 2.0B
GPS
WLAN
Audio
Micro SD card, up to 64 GB (internal)
Power: Plug-in screw terminal
Mini SIM
4 SMA antenna connectors

Tilgængelig på restordre

Varenummer (SKU): 193250 Kategori: MC100 series

Beskrivelse
Anmeldelser (0)

Beskrivelse

Universal gateway for elevators and emergency call

The MC100 Audio Gateway is used as a cost-optimized alternative to a landline. It offers voice services in addition to data transfer and SMS short messages. Monitoring event reporting is possible via messengers such as SMS, email or Telegram. The connection to the central office/control center is via LTE.

The MC100 Audio Gateway has analog and digital inputs and outputs, Ethernet, RS485, CAN bus and audio. It is based on OpenWrt Linux, is freely programmable and supports VoLTE (Voice over LTE – voice telephony in the 4G network).

E1 approval included

We recommend our remote management and monitoring software M2MGate for VPN remote access, update management, device configurations and device management of device fleets for the MC100.
