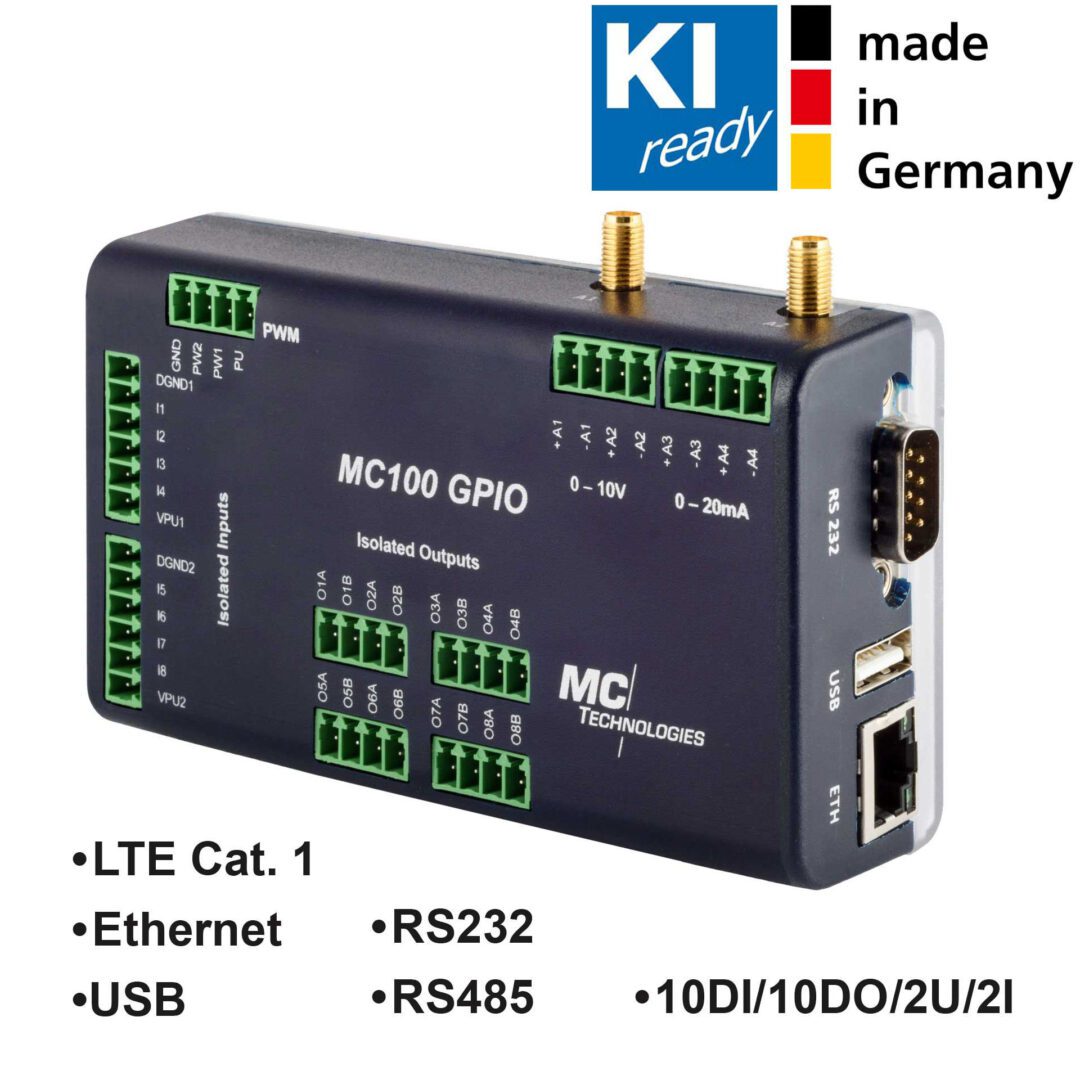

MC100 Gateway GPIO Basic
3007.97 kr. + moms
LTE CAT1 GPIO Gateway Basic, 1ETH/USB/RS-232/RS-485, 10DI/10DO/2U 2I
- LTE Cat1 (4G): Band 1,3,5,7,8 and 20
- HSDPA/HSUPA/HSPA+ (3G): Band 1,5,8, all bands with diversity
- GSM/GPRS/EDGE (2G): Band 3.8
- Dimensions (W x H x D): 120 x 75 x 35mm
- Weight: approx. 140g
- Supply voltage: 8 to 30V DC
- Operating temperature: -20°C to +70°C
- Housing: plastic
- Mounting: Wall mounting / DIN rail mounting
Controller, memory and operating system:
- ARM Cortex-A7, 528 MHz controller
- 512 MB RAM
- 4 GB Flash
- OpenWrt Linux
- Programmable with C/C++, Python™, Java™, Node-RED™ or others
- Basic configuration via web interface, SSH
Interfaces:
- 10/100 MBit/s Ethernet
- Power: plug-in screw terminal
- USB
- RS232
- RS485
- Digital inputs/outputs
- 2 x 0-20 mA, 2 x 0-10 V
- CAN
- Micro SD Card, up to 64 GB (internal)
- Mini SIM
- 2 SMA antenna connections
Tilgængelig på restordre
Beskrivelse
The MC100 Gateway GPIO offers LTE CAT1 for a fast Internet connection as well as a wide range of connection options such as Ethernet, USB, RS232, RS485 and various digital inputs and outputs.
MC100 Gateway GPIO Features:
- 4G Cat1 LTE connectivity for reliable and fast wireless data communication.
- Integrated Quectel EC21-E module for reliable mobile communication and comprehensive connectivity.
- Pre-installed Node-RED™ for easy creation and management of IoT applications and data flow programs.
- OpenWrt 24.10-based Linux distribution that enables the use of a wide range of open source resources and flexible adaptation to specific requirements.
The MC100 GPIO often replaces an oversized and expensive controller and also serves as an IoT gateway.
We recommend our remote management and monitoring software M2MGate for VPN remote access, update management, device configurations and device management of device fleets for the MC100.
