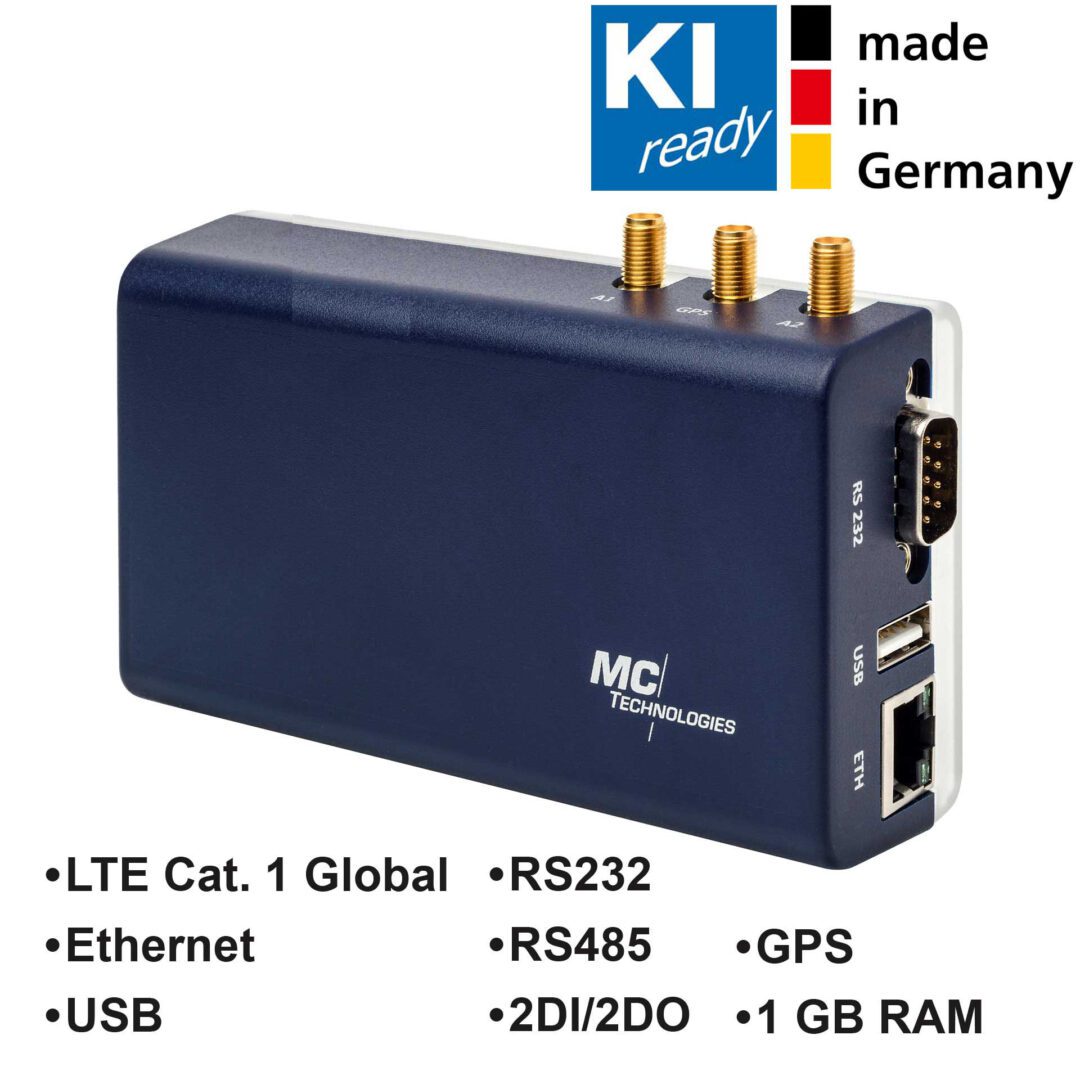

MC100 Gateway Global GPS

MC100 Gateway Global GPS

2424.66 kr. + moms

LTE CAT1 Global Gateway with GPS, 1ETH/USB/RS-232/RS-485, 2DI/2DO

  • LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
  • LTE-TDD: B38/B39/B40/B41
  • WCDMA: B1/B2/B4/B5/B6/B8/B19
  • GSM: B2/B3/B5/B8
  • Dimensions (W x H x D): 120 x 75 x 35mm
  • Weight: approx. 160 g
  • Supply voltage: 10 to 30V DC
  • Operating temperature: -20°C to +70°C
  • Housing: plastic
  • Mounting: Wall mounting / DIN rail mounting

Controller, memory and operating system

  • ARM Cortex-A7 NXP i.MX 6 UltraLite, 528 MHz
  • 512 MB RAM (optional 1GB)
  • 4 GB Flash
  • OpenWrt Linux
  • Programmable with C/C++, Python™, Java™, Node-RED™ or others
  • Basic configuration via web interface, SSH

Interfaces

  • 10/100 MBit/s Ethernet
  • USB 2.0
  • RS232
  • RS485
  • 2 digital IN, 2 digital OUT
  • CAN 2.0B
  • GPS
  • Micro SD card, up to 64 GB (internal)
  • Power: Plug-in screw terminal
  • Mini SIM
  • 3 SMA antenna connectors

Tilgængelig på restordre

Varenummer (SKU): 162802 Kategori:

Beskrivelse

The 4G Cat1 LTE Gateway MC100 Global GPS offers worldwide connectivity and has a wide range of connection options such as Ethernet, USB, RS232, RS485 and CAN.

Features MC100 Global GPS:

  • 4G Cat1 LTE connectivity for reliable and fast wireless data communication.
  • Integrated Quectel EG21-G module for reliable mobile communication with global band coverage for broad connectivity.
  • GPS functionality for precise positioning.
  • Pre-installed Node-RED™ enables easy creation and management of IoT applications and data flow programs.
  • OpenWrt 24.10-based Linux distribution that provides a stable platform for application development.

The MC100 gateway is suitable for various applications and can be used in IoT and M2M scenarios, including data aggregation, remote monitoring, control and much more.

We recommend our remote management and monitoring software M2MGate for VPN remote access, update management, device configurations and device management of device fleets for the MC100.
