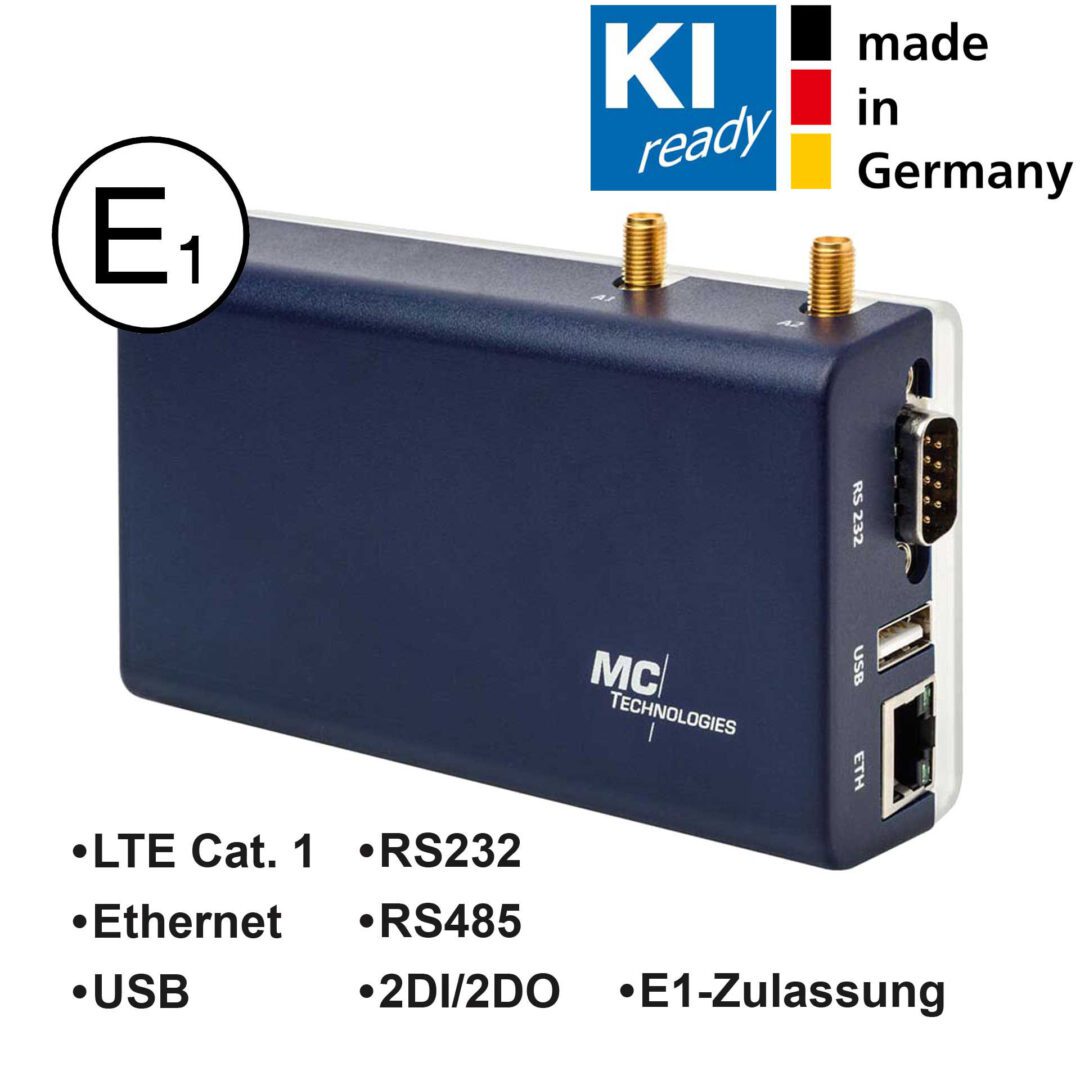

MC100 Gateway Basic E1

MC100 Gateway Basic E1

2370.75 kr. + moms

LTE CAT1 Gateway, 1ETH/USB/RS-232/RS-485, 2DI/2DO, E1 approval

  • LTE (4G) Cat1: Bands: 1, 3, 5, 7, 8, 20
  • WCDMA (3G): Bands: 1, 5, 8
  • GSM/GPRS/EDGE (2G): Bands: 3, 8
  • Dimensions (W x H x D): 120 x 75 x 35mm
  • Weight: approx. 140 g
  • Supply voltage: 10 to 30V DC
  • Operating temperature: -20°C to +70°C
  • Housing: plastic
  • Mounting: Wall mounting / DIN rail mounting

Controller, memory and operating system

  • ARM Cortex-A7 NXP i.MX 6 UltraLite, 528 MHz
  • 512 MB RAM
  • 4 GB Flash
  • OpenWrt Linux
  • Programmable with C/C++, Python™, Java™, Node-RED™ or others
  • Basic configuration via web interface, SSH

Interfaces

  • 10/100 MBit/s Ethernet
  • USB 2.0
  • RS232
  • RS485
  • 2 digital IN, 2 digital OUT
  • CAN 2.0B
  • Micro SD card, up to 64 GB (internal)
  • Power: Plug-in screw terminal
  • Mini SIM
  • 2 SMA antenna connections

Tilgængelig på restordre

Varenummer (SKU): 160480E1 Kategori:

Beskrivelse

The MC100 Gateway Basic with E1 approval is equipped with a variety of industrial interfaces such as RS232/RS485, CAN bus, Ethernet and digital inputs and outputs.

Features MC100 Gateway Basic E1:

  • 4G Cat1 LTE connectivity for reliable and fast wireless data communication.
  • Integrated Quectel EC21-E module for reliable mobile communication and comprehensive connectivity.
  • Pre-installed Node-RED™ for easy creation and management of IoT applications and data flow programs.
  • OpenWrt 24.10-based Linux distribution that enables the use of a wide range of open source resources and flexible adaptation to specific requirements.
  • With E1 approval, the MC100 gateway is suitable for installation in road vehicles and ensures a reliable network infrastructure, efficient communication and data transmission.

The MC100 Gateway Basic E1 is ideal for installation in local public transport vehicles and for various IoT applications.

We recommend our remote management and monitoring software M2MGate for VPN remote access, update management, device configurations and device management of device fleets for the MC100.
