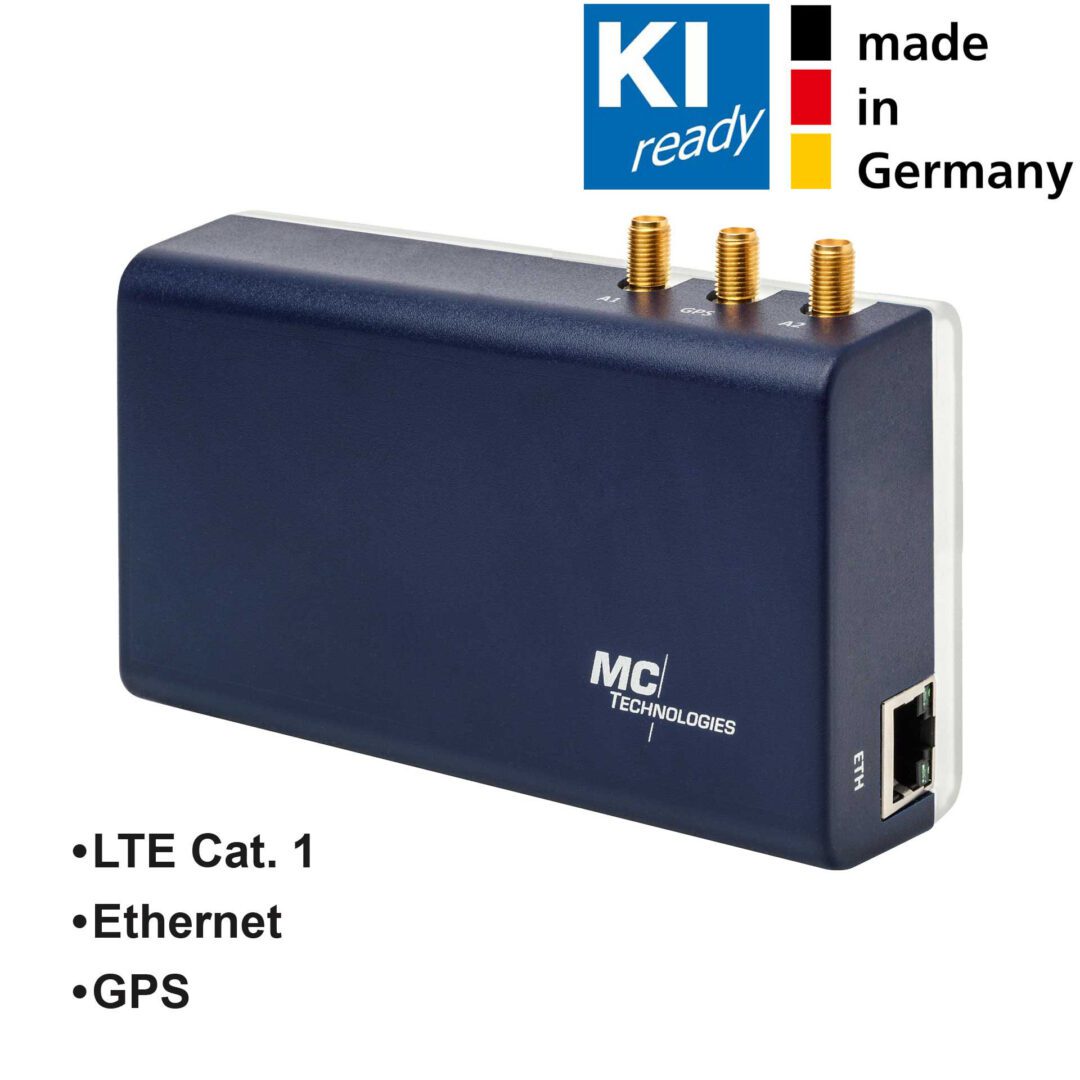

MC100 Terminal GPS
1959.38 kr. + moms
LTE CAT1 Terminal with GPS, 1ETH Interface
- LTE (4G) Cat1: Bands: 1, 3, 5, 7, 8, 20
- WCDMA (3G): Bands: 1, 5, 8
- GSM/GPRS/EDGE (2G): Bands: 3, 8
- Dimensions (W x H x D): 120 x 75 x 35mm
- Weight: approx. 135g
- Supply voltage: 10 to 30V DC
- Operating temperature: -20°C to +70°C
- Housing: plastic
- Mounting: Wall mounting / DIN rail mounting
Controller, memory and operating system
- ARM Cortex-A7 NXP i.MX 6 UltraLite, 528 MHz
- 512 MB RAM
- 4 GB Flash
- OpenWrt Linux
- Programmable with C/C++, Python™, Java™, Node-RED™ or others
- Basic configuration via web interface, SSH
Interfaces
- 10/100 MBit/s Ethernet
- Micro SD card, up to 64 GB (internal)
- Power: Plug-in screw terminal
- Mini SIM
- GPS
- 3 SMA antenna connectors
Tilgængelig på restordre
Beskrivelse
The 4G Cat1 LTE IoT data terminal with GPS enables precise location determination, fast internet connections and reliable data transmission.
MC100 Terminal GPS Features:
- 4G Cat1 LTE connectivity for reliable and fast wireless data communication.
- Integrated Quectel EC21-E module for stable mobile communication and support of various frequency bands and standards.
- GPS functionality for using location information in IoT applications.
- Pre-installed Node-RED™ enables easy creation and management of IoT applications and data flow programs.
- OpenWrt 24.10-based Linux distribution that enables the use of a variety of open source resources and flexible customization to specific requirements
The MC100 Terminal GPS offers a powerful solution for IoT applications such as asset tracking, remote monitoring, telemetry and more.
We recommend our remote management and monitoring software M2MGate for VPN remote access, update management, device configurations and device management of device fleets for the MC100.
