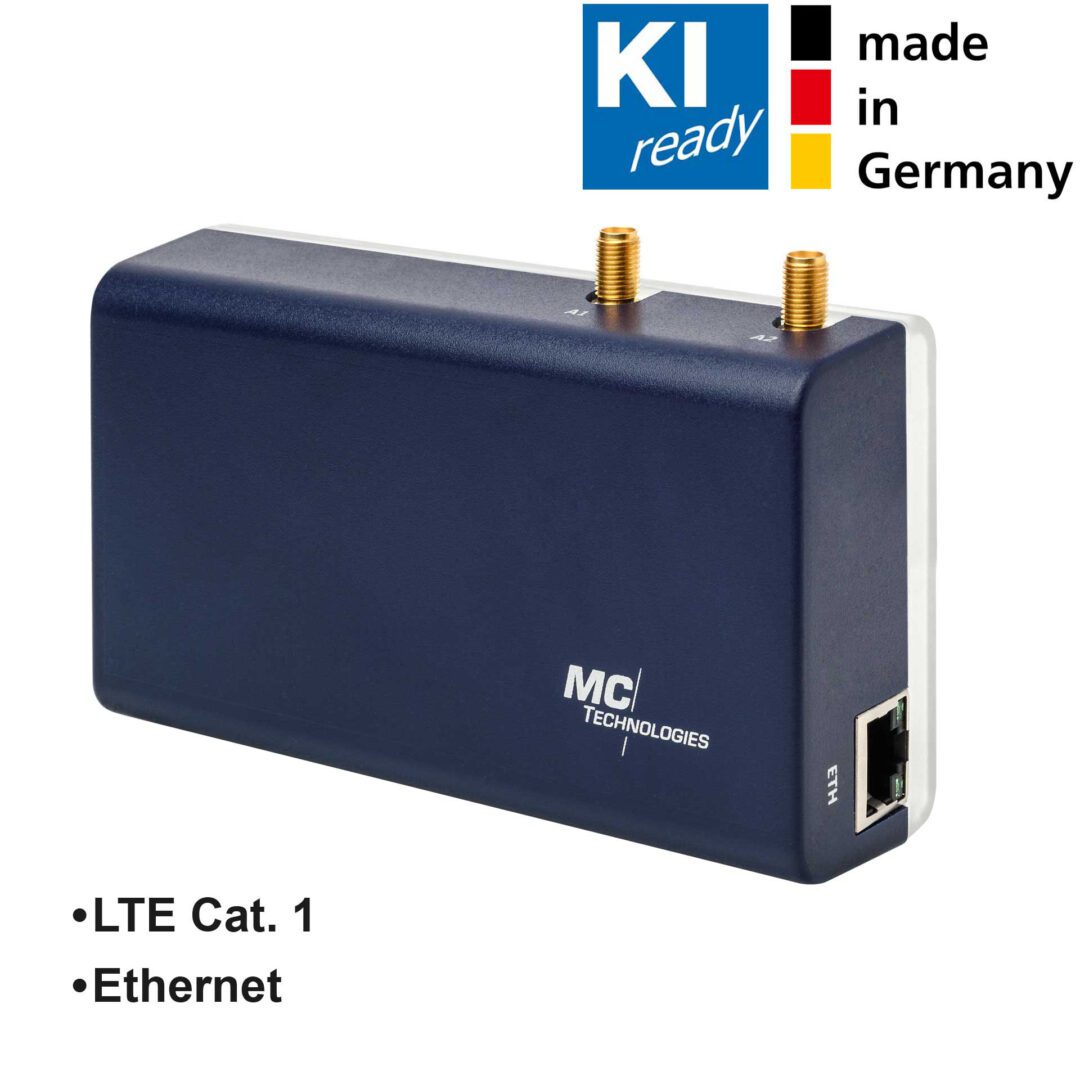

MC100 Terminal Basic
1865.63 kr. + moms
LTE CAT1 Terminal, 1ETH Interface
- LTE (4G) Cat1: Bands: 1, 3, 5, 7, 8, 20
- WCDMA (3G): Bands: 1, 5, 8
- GSM/GPRS/EDGE (2G): Bands: 3, 8
- Dimensions (W x H x D): 120 x 75 x 35mm
- Weight: approx. 135g
- Supply voltage: 10 to 30V DC
- Operating temperature: -20°C to +70°C
- Housing: plastic
- Mounting: Wall mounting / DIN rail mounting
Controller, memory and operating system
- ARM Cortex-A7 NXP i.MX 6 UltraLite, 528 MHz
- 512 MB RAM
- 4 GB Flash
- OpenWrt Linux
- Programmable with C/C++, Python™, Java™, Node-RED™ or others
- Basic configuration via web interface, SSH
Interfaces
- 10/100 MBit/s Ethernet
- Micro SD card, up to 64 GB (internal)
- Power: Plug-in screw terminal
- Mini SIM
- 2 SMA antenna connections
Tilgængelig på restordre
Beskrivelse
The MC100 has the dimensions 120 x 75 x 35 mm and a weight of approx. 135 g. It is operated with a supply voltage of 10 to 30 V DC and has an operating temperature range of -20°C to +70°C. The housing is made of plastic and can be mounted either on the wall or on a top-hat rail.
The device is equipped with an ARM Cortex-A7 NXP i.MX 6 UltraLite processor and the clock frequency is 528 MHz. It has 512 MB RAM and 4 GB flash memory. OpenWrt Linux is used as the operating system and the device can be programmed using various programming languages such as C/C++, Python™, Java™ and Node-RED™ The basic configuration can be carried out via a web interface or via SSH.
In terms of interfaces, the MC100 offers a 10/100 MBit/s Ethernet connection, a slot for a micro SD card with support for up to 64 GB of internal memory, a power connection via a plug-in screw terminal, a slot for a mini SIM card and two SMA antenna connections.
We recommend our remote management and monitoring software M2MGate for VPN remote access, update management, device configurations and device management of device fleets for the MC100.
