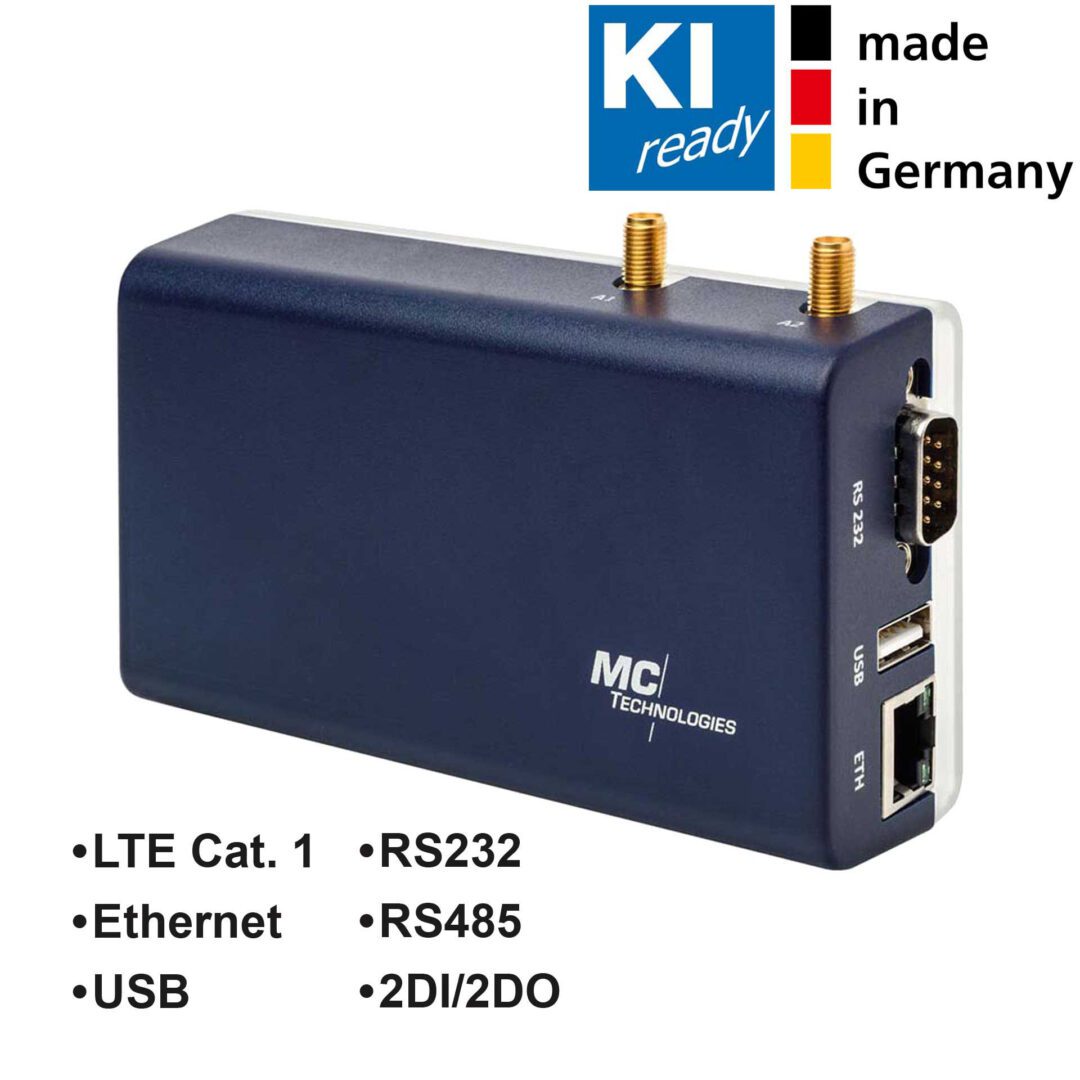

MC100 Gateway Basic
2146.88 kr. + moms
LTE CAT1 Gateway, 1ETH/USB/RS-232/RS-485, 2DI/2DO
- LTE (4G) Cat1: Bands: 1, 3, 5, 7, 8, 20
- WCDMA (3G): Bands: 1, 5, 8
- GSM/GPRS/EDGE (2G): Bands: 3, 8
- Dimensions (W x H x D): 120 x 75 x 35mm
- Weight: approx. 140 g
- Supply voltage: 10 to 30V DC
- Operating temperature: -20°C to +70°C
- Housing: plastic
- Mounting: Wall mounting / DIN rail mounting
Controller, memory and operating system
- ARM Cortex-A7 NXP i.MX 6 UltraLite, 528 MHz
- 512 MB RAM
- 4 GB Flash
- OpenWrt Linux
- Programmable with C/C++, Python™, Java™, Node-RED™ or others
- Basic configuration via web interface, SSH
Interfaces
- 10/100 MBit/s Ethernet
- USB 2.0
- RS232
- RS485
- 2 digital IN, 2 digital OUT
- CAN 2.0B
- Micro SD card, up to 64 GB (internal)
- Power: Plug-in screw terminal
- Mini SIM
- 2 SMA antenna connections
Tilgængelig på restordre
Beskrivelse
The MC100 Gateway Basic is equipped with a variety of industrial interfaces such as RS232/RS485, CAN bus, Ethernet and digital inputs and outputs.
MC100 Gateway Basic Features:
- 4G Cat1 LTE connectivity for reliable and fast wireless data communication.
- Integrated Quectel EC21-E module for reliable mobile communication and comprehensive connectivity.
- Pre-installed Node-RED™ for easy creation and management of IoT applications and data flow programs.
- OpenWrt 24.01-based Linux distribution that enables the use of a wide range of open source resources and flexible adaptation to specific requirements.
The MC100 Gateway Basic is suitable for a wide range of applications, such as remote maintenance, remote monitoring and other IoT applications.
We recommend our remote management and monitoring software M2MGate for VPN remote access, update management, device configurations and device management of device fleets for the MC100.
