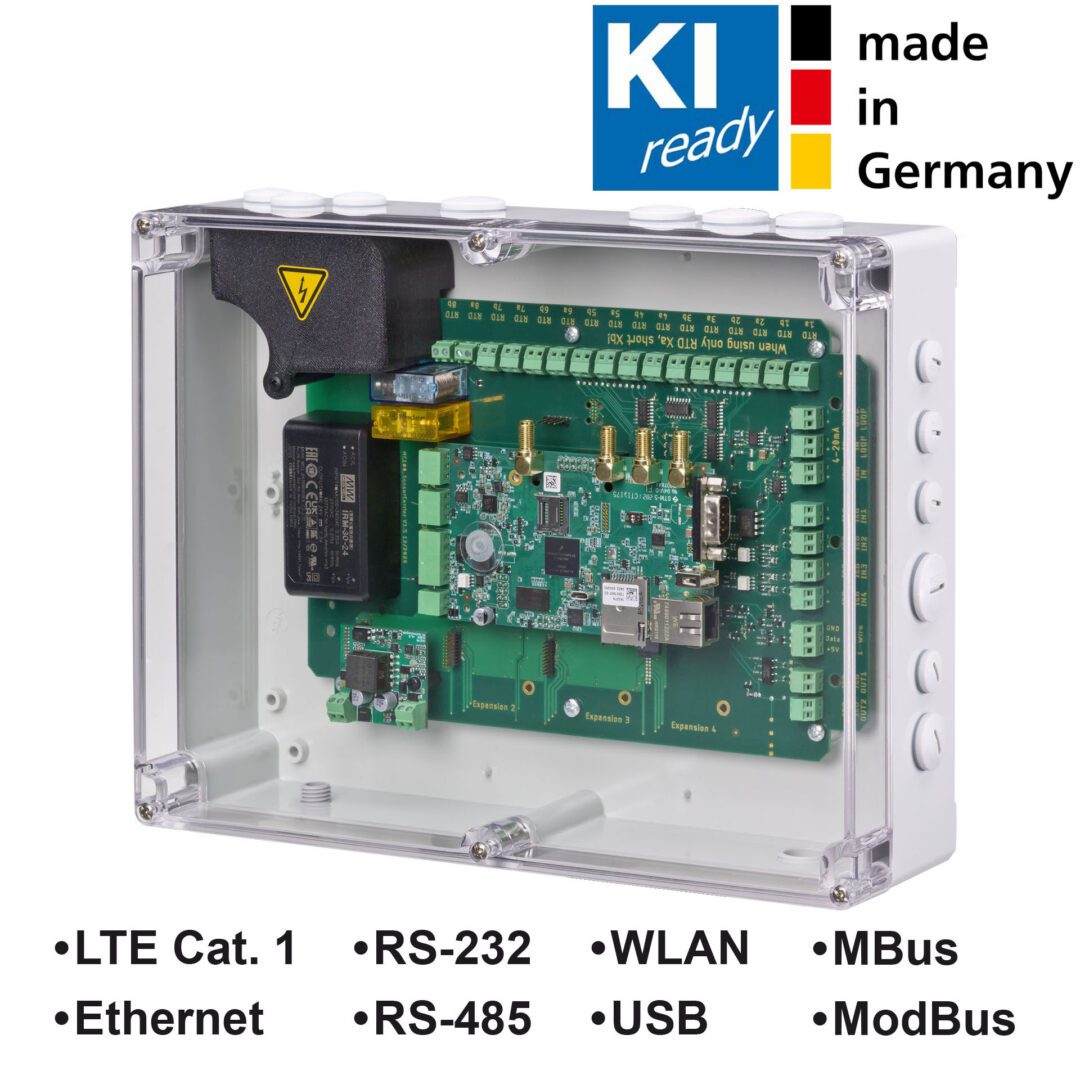

MC100 Gateway SensorBox M-Bus

6990.56 kr. + moms

LTE CAT1 SensorBox M-Bus Modbus, 220V, 1 GB Variante, Closed Case, IP65

LTE Cat1 (4G): Band 1,3,5,7,8 and 20
HSDPA/HSUPA/HSPA+ (3G): Band 1,5,8, all bands with diversity
GSM/GPRS/EDGE (2G): Band 3.8
Dimensions (B x H x T): 250 x 180 x 80 mm
Weight: approx. 1 kg
Supply voltage: 85 to 264V DC
Operating temperature: -20°C to +70°C
Housing: plastic
Protection class IP65
Mounting: wall

Controller, memory and operating system:

ARM Cortex-A7, 528 MHz controller
1 GB RAM
4 GB Flash
OpenWrt Linux
Programmable with C/C++, Python™, Java™, Node-RED™ or others
Basic configuration via web interface, SSH

Interfaces:

10/100 MBit/s Ethernet
USB
RS-232
RS-485
CAN
Modbus
M-Bus
Digital inputs/outputs
Analog inputs/outputs
Input/output relay
PT100/PT1000
1-wire
Micro SD Card, up to 64 GB (internal)
Mini SIM
4 Extension board slots
2 SMA antenna connections

Tilgængelig på restordre

Varenummer (SKU): 162188 Kategori: MC100 series

Beskrivelse
Anmeldelser (0)

Beskrivelse

The MC100 SensorBox with M-Bus extension is a system for control and regulation technology as well as for control and visualisation systems. It is equipped with a large number of interfaces and can be expanded modularly with additional slots. OpenWrt Linux is used as the operating system and the device can be programmed using various programming languages such as C/C++, Python™, Java™ and Node-RED™

It is a central data collector for the following use cases:

Meter readings are collected in the gateway and, depending on the settings, sent daily, weekly or monthly to servers or a web portal specified by you.
Ideal solution for data collection for billing water, heating and cooling.
Data can be transferred to almost all accounting programmes.
Monitoring of pumps in the water circuit, replacement of expensive PLC controls.

Wired sensors such as resistance thermometers with PT100/PT1000 resistors or temperature sensors with PT100 and PT1000 sensors can be connected to the MC100 SensorBox M-Bus.

We recommend our remote management and monitoring software M2MGate for VPN remote access, update management, device configurations and device management of device fleets for the MC100.
