MC100 Gateway Global SensT2 GPS

4301.72 kr. + moms

LTE CAT1 Global Gateway with GPS and sensor interfaces, 1ETH, 8DI/2DO/2U/2I

LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
LTE-TDD: B38/B39/B40/B41
WCDMA: B1/B2/B4/B5/B6/B8/B19
GSM: B2/B3/B5/B8
Dimensions (W x H x D): 120 x 75 x 35mm
Weight: approx. 180 g
Supply voltage: 10 to 30V DC
Operating temperature: -20°C to +70°C
Housing: plastic
Mounting: Wall mounting / DIN rail mounting

Controller, memory and operating system:

ARM Cortex-A7, 528 MHz controller
1GB RAM
4 GB Flash
OpenWrt Linux
Programmable with C/C++, Python™, Java™, Node-RED™ or others
Basic configuration via web interface, SSH

Interfaces:

10/100 MBit/s Ethernet
USB 2.0
2 digital IN / 2 digital OUT
RS232
2 x RS485 (1x galvanically isolated)
CAN 2.0B
8 digital IN
2 digital OUT
2 anlaog IN current 4-20mA
2 analog IN voltage 0-10V
2 analog OUT 4-20mA
4 PT100/PT1000
1-Wire BUS
GPS
Micro SD Card, up to 64 GB (internal)
Power: plug-in screw terminal
Mini SIM
3 SMA antenna connectors

Tilgængelig på restordre

Varenummer (SKU): 193314 Kategori: MC100 series

Beskrivelse
Anmeldelser (0)

Beskrivelse

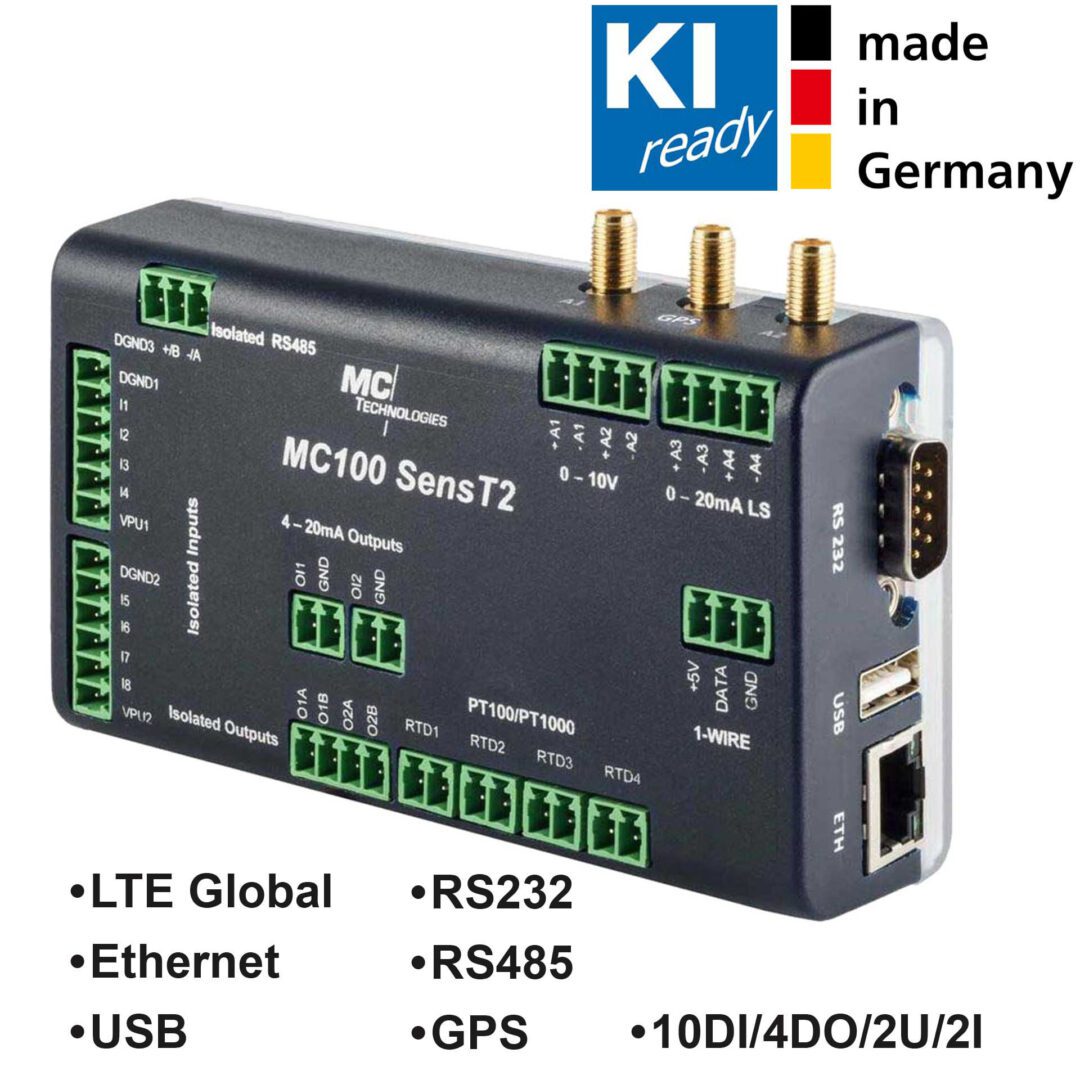

The 4G Cat1 LTE IoT Gateway Global with GPS offers a reliable and fast internet connection and worldwide connectivity. It has a wide range of connection options such as Ethernet, USB, RS232, RS485 and sensor interfaces such as digital and analogue inputs and outputs.

MC100 Gateway SensT2 Global Features:

4G Cat1 LTE connectivity for reliable and fast wireless data communication.
Integrated Quectel EG21-G module for reliable mobile communication with global band coverage for broad connectivity.
GPS functionality for precise positioning.
Pre-installed Node-RED™ for easy creation and management of IoT applications and data flow programs.
OpenWrt 24.10-based Linux distribution that enables the use of a wide range of open source resources and flexible adaptation to specific requirements.

Application examples can be found in remote monitoring, remote control, telemetry and other IoT applications that require wireless connectivity and control of digital and analogue inputs and outputs.

We recommend our remote management and monitoring software M2MGate for VPN remote access, update management, device configurations and device management of device fleets for the MC100.
