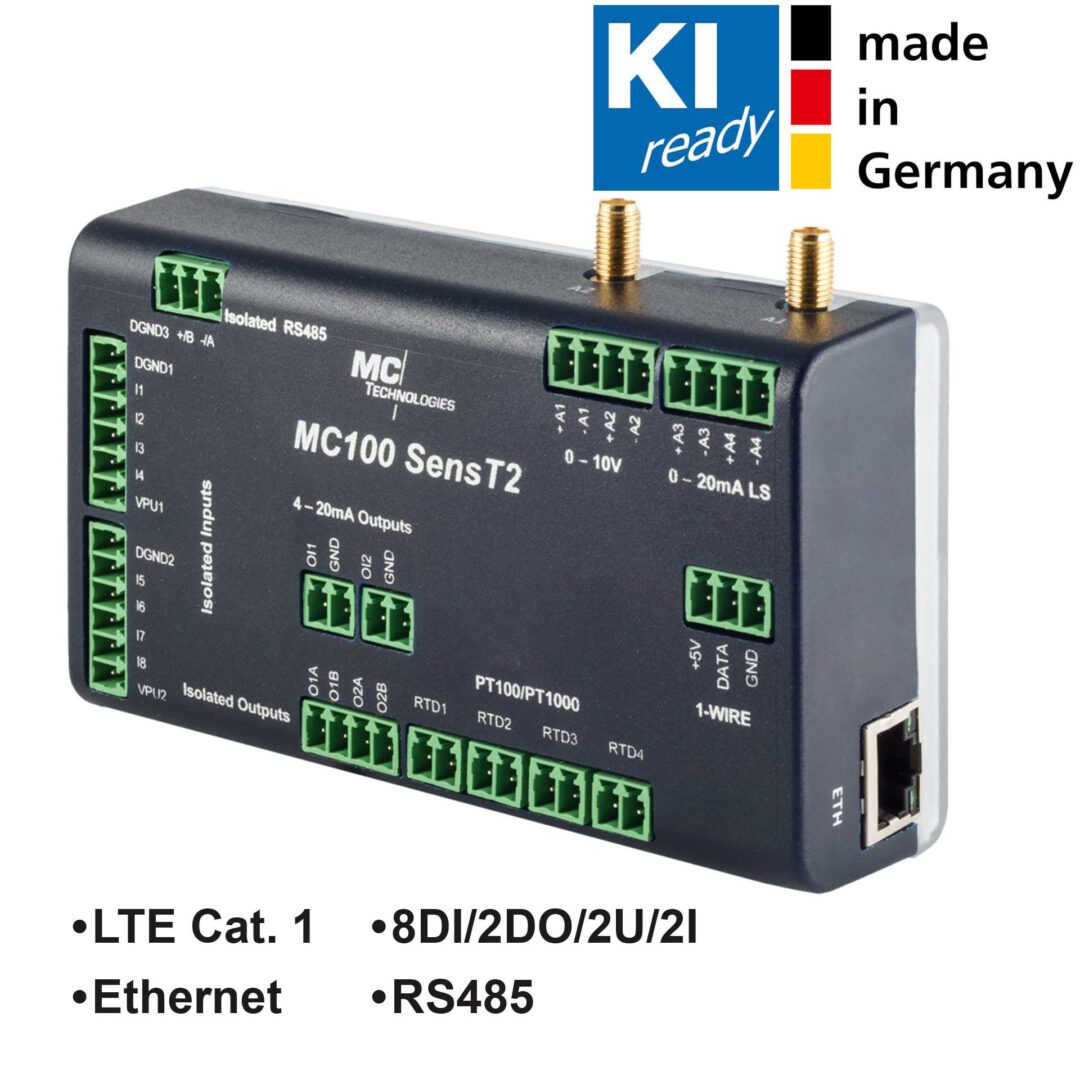

MC100 Terminal SensT2 Basic

3214.22 kr. + moms

LTE CAT1 Terminal Basic with sensor interfaces, 1ETH, 8DI/2DO/2U/2I

LTE Cat1 (4G): Band 1,3,5,7,8 and 20
HSDPA/HSUPA/HSPA+ (3G): Band 1,5,8, all bands with diversity
GSM/GPRS/EDGE (2G): Band 3.8
Dimensions (W x H x D): 120 x 75 x 35mm
Weight: approx. 183g
Supply voltage: 8 to 30V DC
Operation temperature: -20°C to +70°C
Housing: plastic
Mounting: Wall mounting / DIN rail mounting

Controller, memory and operating system:

ARM Cortex-A7, 528 MHz controller
512 MB RAM
4 GB Flash
OpenWrt Linux
Programmierbar mit C/C++, Python™, Java™, Node-RED™ und andere
Basic configuration via web interface, SSH

Interfaces:

10/100 MBit/s Ethernet
RS485
8 digital IN
2 digital OUT
2 anlaog IN current 4-20mA
2 analog IN voltage 0-10V
2 analog OUT 4-20mA
4 PT100/PT1000
1-Wire BUS
Micro SD Card, up to 64 GB (internal)
Power: plug-in screw terminal
Mini SIM
2 SMA antenna connections

Tilgængelig på restordre

Varenummer (SKU): 160489 Kategori: MC100 series

Beskrivelse
Anmeldelser (0)

Beskrivelse

The MC100 SensT2 is equipped with LTE CAT1 for a fast internet connection and offers a variety of sensor interfaces such as various digital and analog inputs and outputs.

MC100 Terminal SensT2 Features:

4G Cat1 LTE connectivity for reliable and fast wireless data communication.
Integrated Quectel EC21-E module for reliable mobile communication and comprehensive connectivity.
Pre-installed Node-RED™ for easy creation and management of IoT applications and data flow programs.
OpenWrt 24.10-based Linux distribution that enables the use of a wide range of open source resources and flexible adaptation to specific requirements.

Application examples can be found in remote monitoring, remote control, telemetry and other IoT applications that require wireless connectivity and control of digital and analog inputs and outputs.
