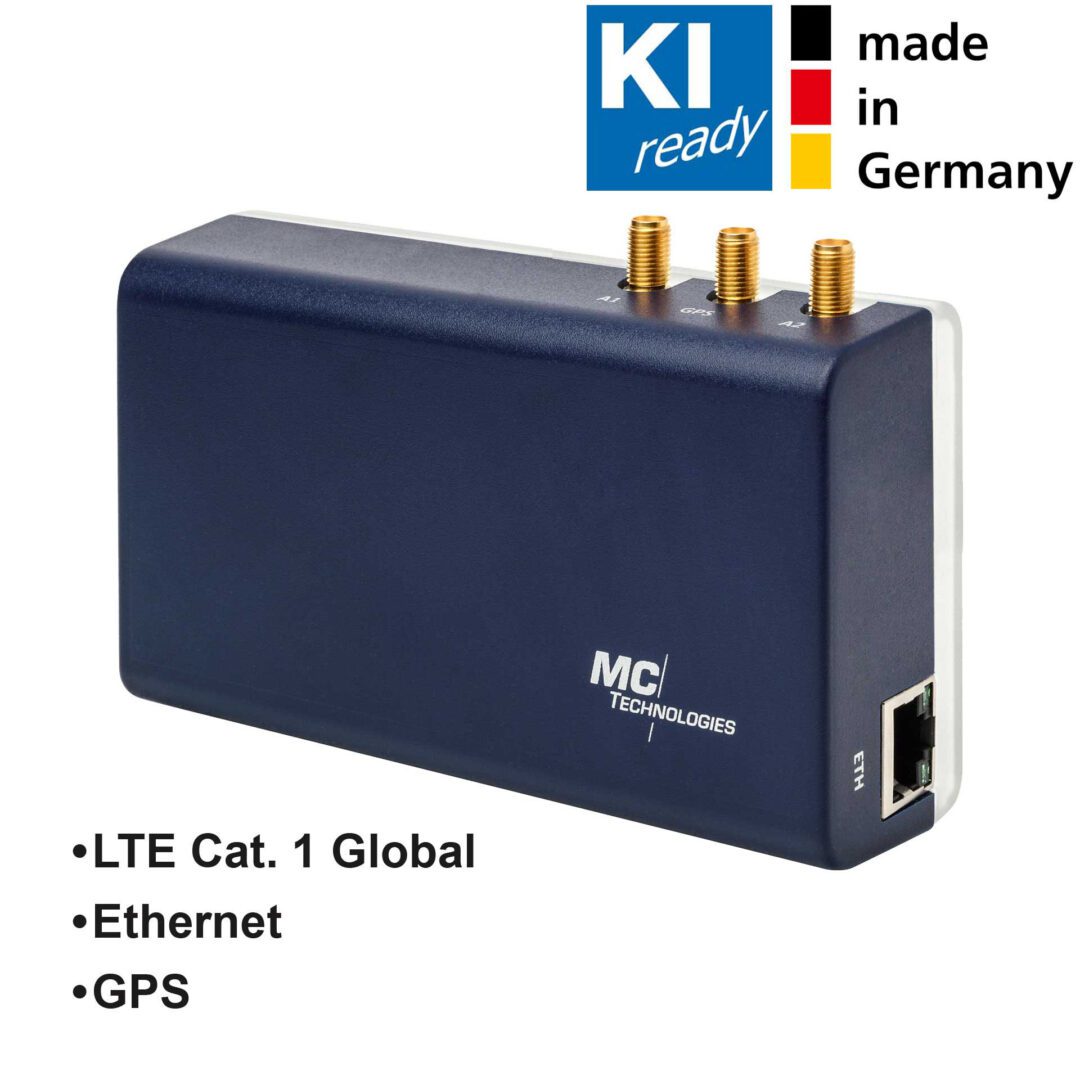

MC100 Terminal Global GPS

MC100 Terminal Global GPS

2146.88 kr. + moms

LTE CAT1 Global Terminal with GPS, 1ETH Interface

  • LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
  • LTE-TDD: B38/B39/B40/B41
  • WCDMA: B1/B2/B4/B5/B6/B8/B19
  • GSM: B2/B3/B5/B8
  • Dimensions (W x H x D): 120 x 75 x 35mm
  • Weight: approx. 160 g
  • Supply voltage: 10 to 30V DC
  • Operating temperature: -20°C to +70°C
  • Housing: plastic
  • Mounting: Wall mounting / DIN rail mounting

Controller, memory and operating system

  • ARM Cortex-A7 NXP i.MX 6 UltraLite, 528 MHz
  • 512 MB RAM
  • 4 GB Flash
  • OpenWrt Linux
  • Programmable with C/C++, Python™, Java™, Node-RED™ or others
  • Basic configuration via web interface, SSH

Interfaces

  • 10/100 MBit/s Ethernet
  • GPS
  • Micro SD card, up to 64 GB (internal)
  • Power: Plug-in screw terminal
  • Mini SIM
  • 3 SMA antenna connectors

Tilgængelig på restordre

Varenummer (SKU): 162510 Kategori:

Beskrivelse

The 4G Cat1 LTE Global Terminal with integrated GPS, pre-installed Node-RED™ and an OpenWrt 21-based Linux distribution is a powerful solution for global connectivity and application development.

Features MC100 Terminal Global GPS:

  • 4G Cat1 LTE connectivity for reliable and fast wireless data communication.
  • Integrated Quectel EG21-G module for reliable mobile communication with global band coverage for broad connectivity.
  • GPS functionality for using location information in IoT applications.
  • Pre-installed Node-RED™ enables easy creation and management of IoT applications and data flow programs.
  • OpenWrt 24.10-based Linux distribution that enables the use of a variety of open source resources and flexible customization to specific requirements

The MC100 Terminal Global GPS is suitable for various applications such as asset tracking, location monitoring, remote monitoring and other IoT applications.

We recommend our remote management and monitoring software M2MGate for VPN remote access, update management, device configurations and device management of device fleets for the MC100.
