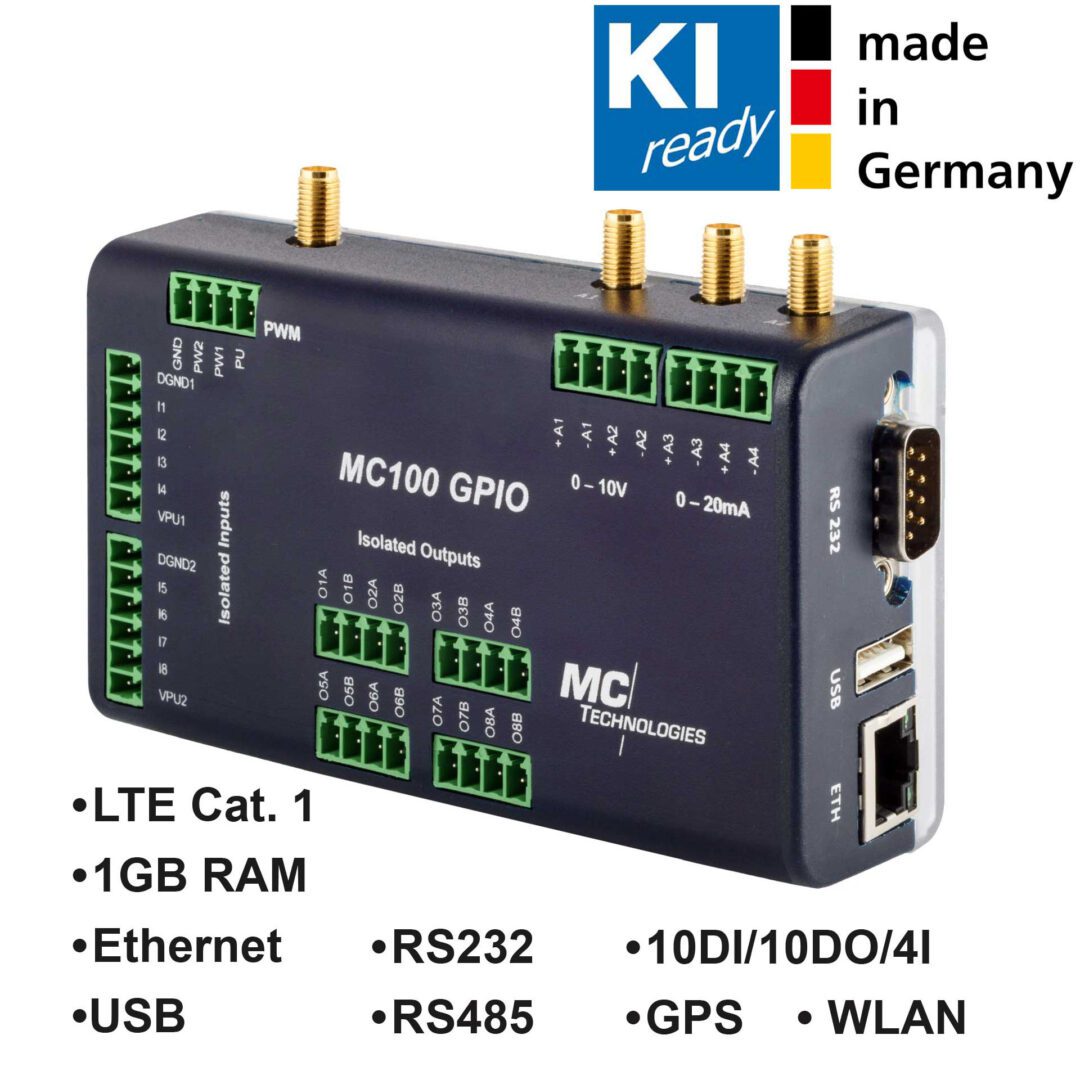

MC100 Gateway GPIO GPS/WLAN

4365.28 kr. + moms

LTE CAT1 GPIO Gateway with GPS/WiFi, 1GB RAM, 1ETH/USB/RS-232/RS-485, 10DI/10DO/4I

LTE (4G) Cat1: Bands: 1, 3, 5, 7, 8, 20
WCDMA (3G): Bands: 1, 5, 8
GSM/GPRS/EDGE (2G): Bands: 3, 8
Dimensions (W x H x D): 120 x 75 x 35mm
Weight: approx. 175 g
Supply voltage: 10 to 30V DC
Operating temperature: -20°C to +70°C
Housing: plastic
Mounting: Wall mounting / DIN rail mounting

Controller, memory and operating system

ARM Cortex-A7 NXP i.MX 6 UltraLite, 528 MHz
1 GB RAM
4 GB Flash
OpenWrt Linux
Programmable with C/C++, Python™, Java™, Node-RED™ or others
Basic configuration via web interface, SSH

Interfaces

10/100 MBit/s Ethernet
USB 2.0
RS232
RS485
CAN 2.0B
10 digital IN, 10 digital OUT
4 analog inputs
2 PWM outputs
GPS
WLAN
Micro SD card, up to 64 GB (internal)
Power: Plug-in screw terminal
Mini SIM
4 SMA antenna connectors

Tilgængelig på restordre

Varenummer (SKU): 193780 Kategori: MC100 series

Beskrivelse
Anmeldelser (0)

Beskrivelse

The MC100 Gateway GPIO with GPS and WLAN offers LTE CAT1 for a fast Internet connection as well as a wide range of connection options such as Ethernet, USB, RS232, RS485 and various digital inputs and outputs.

Features MC100 Gateway GPIO GPS/WLAN with 1 GB RAM:

4G Cat1 LTE connectivity for reliable and fast wireless data communication.
Integrated Quectel EC21-E module for reliable mobile communication and comprehensive connectivity.
Pre-installed Node-RED™ for easy creation and management of IoT applications and data flow programs.
OpenWrt 21-based Linux distribution that enables the use of a variety of open source resources and flexible customization to specific requirements.
The working memory of 1 gigabyte enables improved system performance for resource-intensive applications.

Application examples can be found in various IoT scenarios, including monitoring, remote control, telemetry and other applications that require wireless connectivity and control of digital inputs and outputs. The MC100 GPIO often replaces an oversized and expensive controller and also serves as an IoT gateway.

We recommend our remote management and monitoring software M2MGate for VPN remote access, update management, device configurations and device management of device fleets for the MC100.
