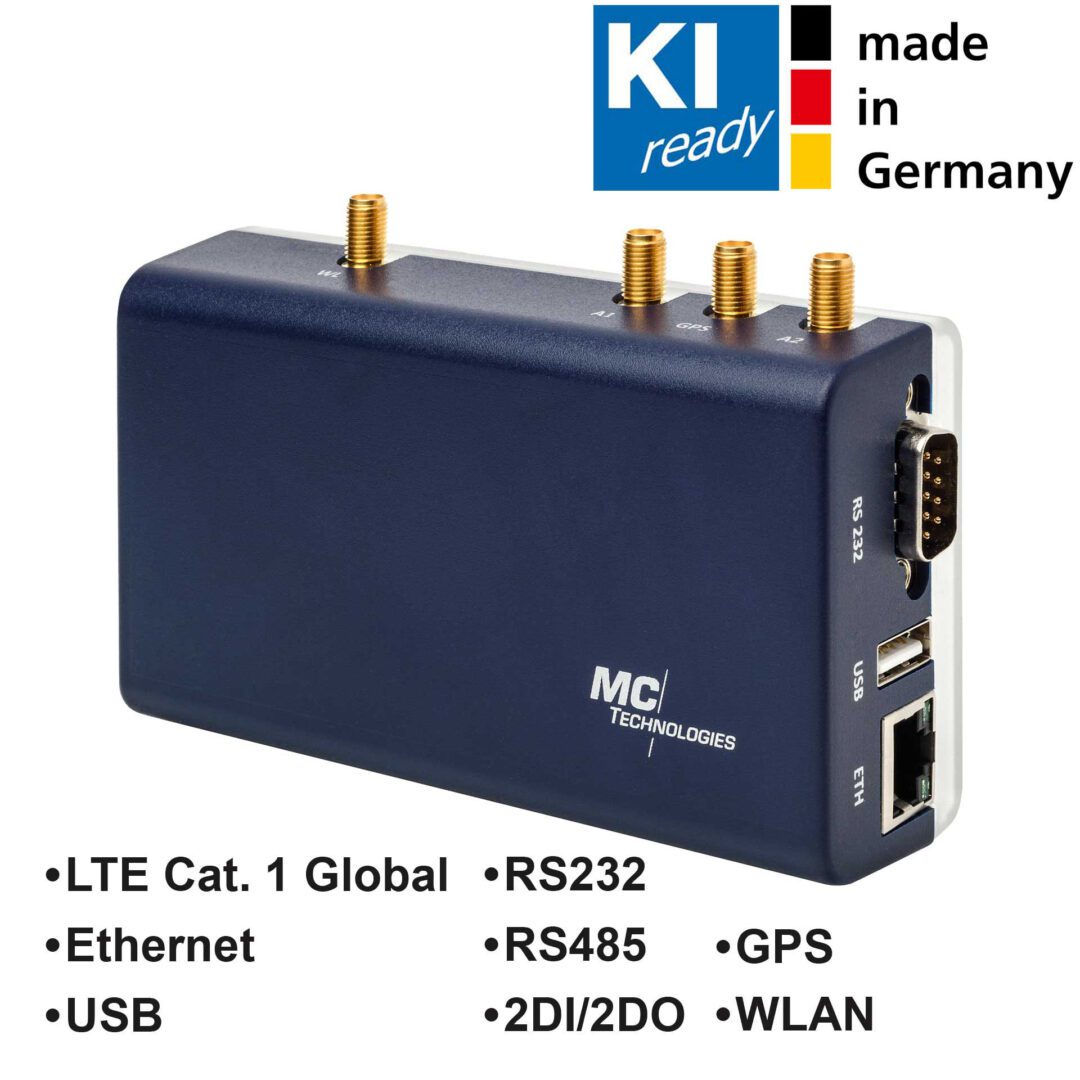

MC100 Gateway Global WLAN/GPS

2607.94 kr. + moms

LTE CAT1 Global Gateway with GPS/WiFi, 1ETH/USB/RS-232/RS-485, 2DI/2DO

LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
LTE-TDD: B38/B39/B40/B41
WCDMA: B1/B2/B4/B5/B6/B8/B19
GSM: B2/B3/B5/B8
Dimensions (W x H x D): 120 x 75 x 35mm
Weight: approx. 160 g
Supply voltage: 10 to 30V DC
Operating temperature: -20°C to +70°C
Housing: plastic
Mounting: Wall mounting / DIN rail mounting

Controller, memory and operating system

ARM Cortex-A7 NXP i.MX 6 UltraLite, 528 MHz
512 MB RAM
4 GB Flash
OpenWrt Linux
Programmable with C/C++, Python™, Java™, Node-RED™ or others
Basic configuration via web interface, SSH

Interfaces

10/100 MBit/s Ethernet
USB 2.0
RS232
RS485
2 digital IN, 2 digital OUT
CAN 2.0B
GPS
WLAN
Micro SD card, up to 64 GB (internal)
Power: Plug-in screw terminal
Mini SIM
4 SMA antenna connectors

Tilgængelig på restordre

Varenummer (SKU): 162220 Kategori: MC100 series

Beskrivelse
Anmeldelser (0)

Beskrivelse

The 4G Cat1 LTE IoT Gateway Global with GPS and WLAN offers a reliable and fast internet connection and worldwide connectivity and has a wide range of connection options such as Ethernet, USB, RS232, RS485 and CAN.

Features MC100 Gateway Global GPS/WLAN:

4G Cat1 LTE connectivity for reliable and fast wireless data communication.
Integrated Quectel EG21-G module for reliable mobile communication with global band coverage for broad connectivity.
GPS functionality for precise positioning.
Pre-installed Node-RED™ enables easy creation and management of IoT applications and data flow programs.
OpenWrt 24.10-based Linux distribution that enables the use of a variety of open source resources and flexible customization to specific requirements

The MC100 Gateway GPS/WLAN is suitable for various applications such as smart metering, asset tracking, fleet management, security systems and other IoT applications.

We recommend our remote management and monitoring software M2MGate for VPN remote access, update management, device configurations and device management of device fleets for the MC100.
